| Part Number | ADG884BCBZ-REEL | ADG884BCPZ-REEL | ADG884BCBZ-REEL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 370mOhm | 370mOhm | 370mOhm |
| Channel-to-Channel Matching (ΔRon) | 10mOhm | 10mOhm | 10mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 20ns | 50ns, 20ns | 50ns, 20ns |
| -3db Bandwidth | 18MHz | 18MHz | 18MHz |
| Charge Injection | 125pC | 125pC | 125pC |
| Channel Capacitance (CS(off), CD(off)) | 103pF | 103pF | 103pF |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) | 200pA (Typ) | 200pA (Typ) |
| Crosstalk | -120dB @ 100kHz | -120dB @ 100kHz | -120dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

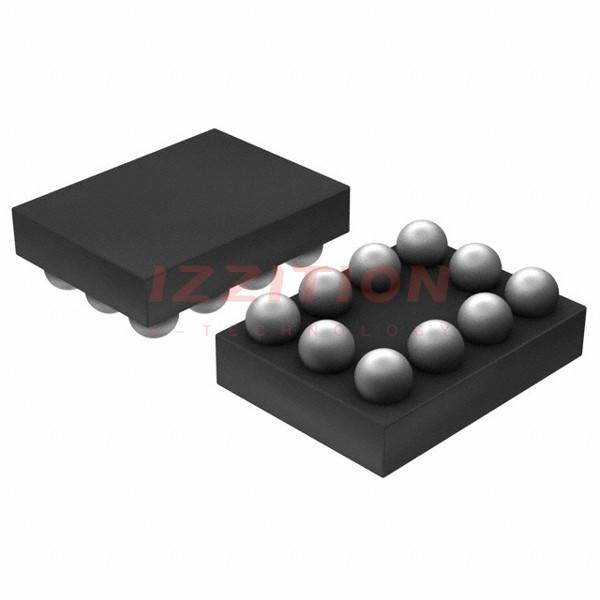

| Package / Case | 10-UFBGA, WLCSP | 10-VFDFN Exposed Pad, CSP | 10-UFBGA, WLCSP |
| Supplier Device Package | 10-WLCSP (2x1.5) | 10-LFCSP-WD (3x3) | 10-WLCSP (2x1.5) |
