Please send RFQ , we will respond immediately.

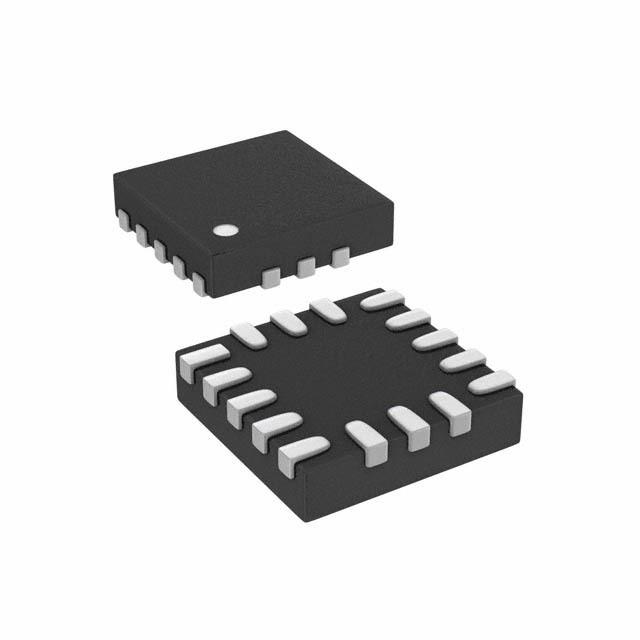

| Part Number | ADG858BCPZ-REEL | ADG858BCPZ-REEL7 | ADG854BCPZ-REEL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 | 2:2 | 2:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 720mOhm | 720mOhm | 850mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm | 40mOhm | 20mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 27ns, 12ns | 27ns, 12ns | 23ns, 8.5ns |
| -3db Bandwidth | 70MHz | 70MHz | 100MHz |
| Charge Injection | 45pC | 45pC | 30pC |
| Channel Capacitance (CS(off), CD(off)) | 25pF | 25pF | 19.5pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) | 10pA (Typ) | 10pA (Typ) |
| Crosstalk | -85dB @ 100kHz | -85dB @ 100kHz | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-UFQFN, CSP | 16-UFQFN, CSP | 10-UFQFN, CSP |
| Supplier Device Package | 16-LFCSP-UQ (2.1x2.1) | 16-LFCSP-UQ (2.1x2.1) | 10-LFCSP-UQ (1.6x1.3) |
