| Part Number | ADG836YCP-REEL7 | ADG836YCPZ-REEL7 | ADG836YCP-REEL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Switch Circuit | - | SPDT | - |
| Multiplexer/Demultiplexer Circuit | - | 2:1 | - |
| Number of Circuits | - | 2 | - |
| On-State Resistance (Max) | - | 650mOhm | - |
| Channel-to-Channel Matching (ΔRon) | - | 40mOhm | - |
| Voltage - Supply, Single (V+) | - | 1.65V ~ 3.6V | - |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | - | 26ns, 7ns | - |
| -3db Bandwidth | - | 57MHz | - |
| Charge Injection | - | 40pC | - |
| Channel Capacitance (CS(off), CD(off)) | - | 25pF | - |
| Current - Leakage (IS(off)) (Max) | - | 200pA (Typ) | - |
| Crosstalk | - | -90dB @ 100kHz | - |
| Operating Temperature | - | -40°C ~ 125°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

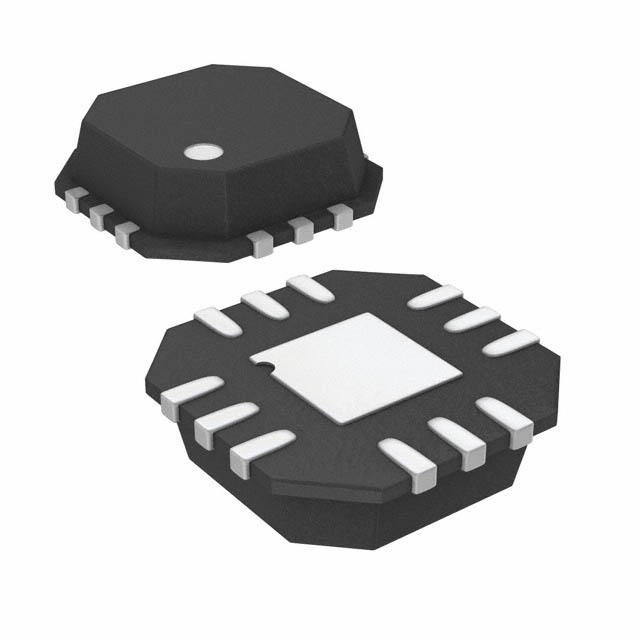

| Package / Case | 12-VFQFN Exposed Pad, CSP | 12-VFQFN Exposed Pad, CSP | 12-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 12-LFCSP-VQ (3x3) | 12-LFCSP-VQ (3x3) | 12-LFCSP-VQ (3x3) |
