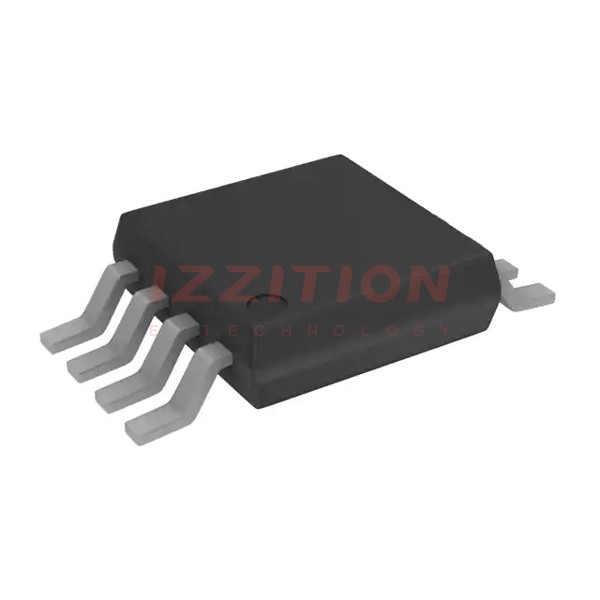

| Part Number | ADG822BRMZ | ADG823BRMZ | ADG802BRMZ | ADG820BRMZ | ADG821BRMZ | ADG822BRM |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Obsolete |
| Switch Circuit | SPST - NC | SPST - NO/NC | SPST - NC | - | SPST - NO | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | - | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 | 1 | - | 2 | 2 |
| On-State Resistance (Max) | 600mOhm | 600mOhm | 300mOhm | - | 600mOhm | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 160mOhm | 160mOhm | - | - | 160mOhm | 160mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | - | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 45ns, 16ns | 45ns, 16ns | 45ns, 15ns | - | 45ns, 16ns | 45ns, 16ns |
| -3db Bandwidth | 24MHz | 24MHz | 12MHz | - | 24MHz | 24MHz |
| Charge Injection | 15pC | 15pC | 50pC | - | 15pC | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 85pF, 98pF | 85pF, 98pF | 180pF, 180pF | - | 85pF, 98pF | 85pF, 98pF |
| Current - Leakage (IS(off)) (Max) | 250pA | 250pA | 250pA | - | 250pA | 250pA |
| Crosstalk | -82dB @ 1MHz | -82dB @ 1MHz | - | - | -82dB @ 1MHz | -82dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP |
