Please send RFQ , we will respond immediately.
| Part Number | ADG811YCPZ-REEL7 | ADG811YCPZ-REEL |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete |
| Switch Circuit | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 |
| On-State Resistance (Max) | 650mOhm | 650mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm | 40mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 5ns | 25ns, 5ns |
| -3db Bandwidth | 90MHz | 90MHz |
| Charge Injection | 30pC | 30pC |
| Channel Capacitance (CS(off), CD(off)) | 30pF, 35pF | 30pF, 35pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA |
| Crosstalk | -90dB @ 100kHz | -90dB @ 100kHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

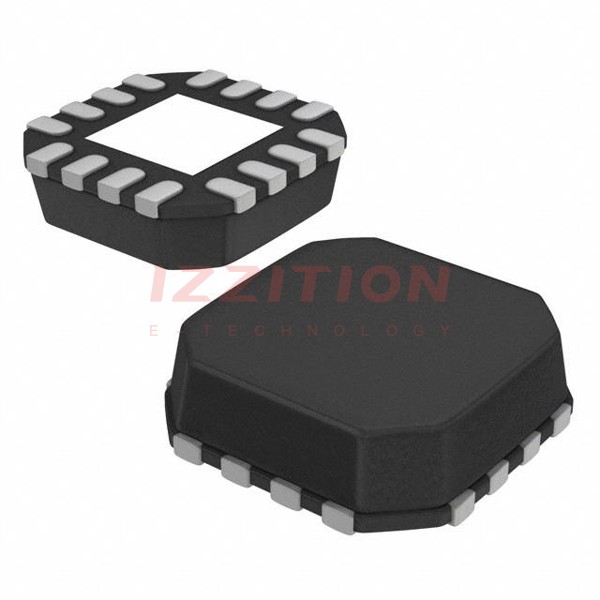

| Package / Case | 16-VFQFN Exposed Pad, CSP | 16-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (3x3) | 16-LFCSP-VQ (3x3) |
