Please send RFQ , we will respond immediately.

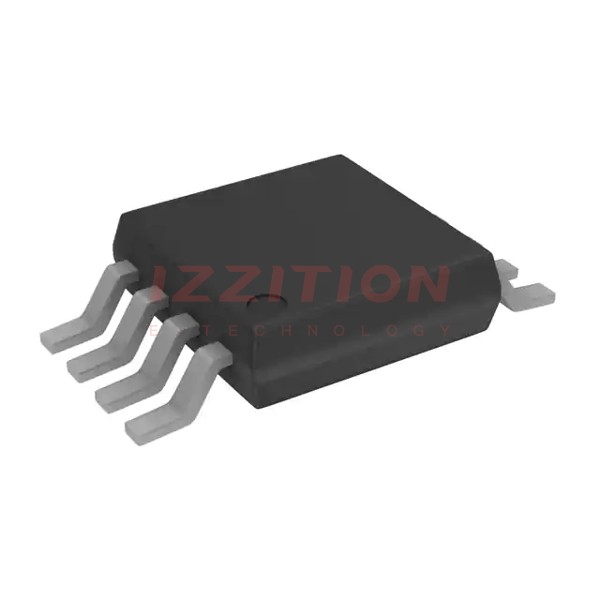

| Part Number | ADG801BRM-REEL | ADG801BRM-REEL7 | ADG802BRM-REEL | ADG821BRM-REEL | ADG801BRMZ-REEL |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NC | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 | 1 | 2 | 1 |
| On-State Resistance (Max) | 300mOhm | 300mOhm | 300mOhm | 600mOhm | 300mOhm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | 160mOhm | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 45ns, 15ns | 45ns, 15ns | 45ns, 15ns | 45ns, 16ns | 45ns, 15ns |
| -3db Bandwidth | 12MHz | 12MHz | 12MHz | 24MHz | 12MHz |
| Charge Injection | 50pC | 50pC | 50pC | 15pC | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 180pF, 180pF | 180pF, 180pF | 180pF, 180pF | 85pF, 98pF | 180pF, 180pF |
| Current - Leakage (IS(off)) (Max) | 250pA | 250pA | 250pA | 250pA | 250pA |
| Crosstalk | - | - | - | -82dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP |
