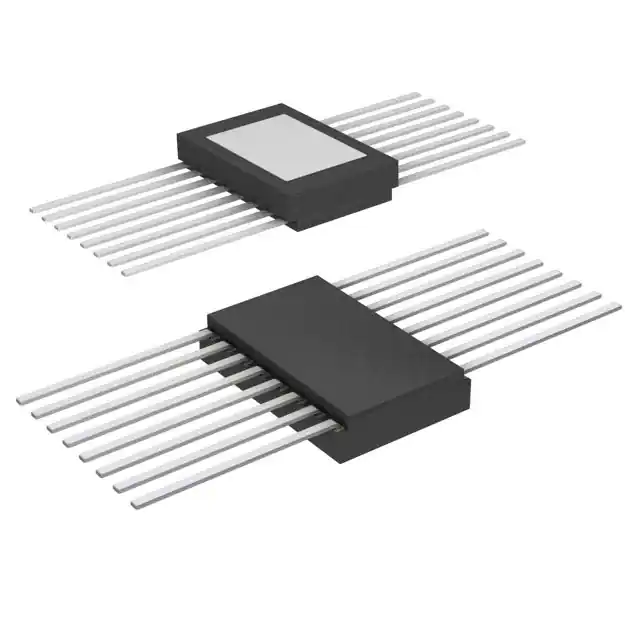

| Part Number | ADG798HFRZ | ADG798HFZ |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Switch Circuit | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 10Ohm | 10Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.25Ohm | 1.25Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 5.5V | 3V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V | ±2.5V |
| Switch Time (Ton, Toff) (Max) | 30ns, 20ns | 30ns, 20ns |
| -3db Bandwidth | 55MHz | 55MHz |
| Charge Injection | 3pC | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 85pF | 13pF, 85pF |
| Current - Leakage (IS(off)) (Max) | 180nA | 180nA |
| Crosstalk | -60dB @ 10MHz | -60dB @ 10MHz |
| Operating Temperature | -55°C ~ 210°C (TA) | -55°C ~ 210°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-CFlatPack | 16-CFlatPack |
| Supplier Device Package | 16-CFlatPack | 16-CFlatPack |
