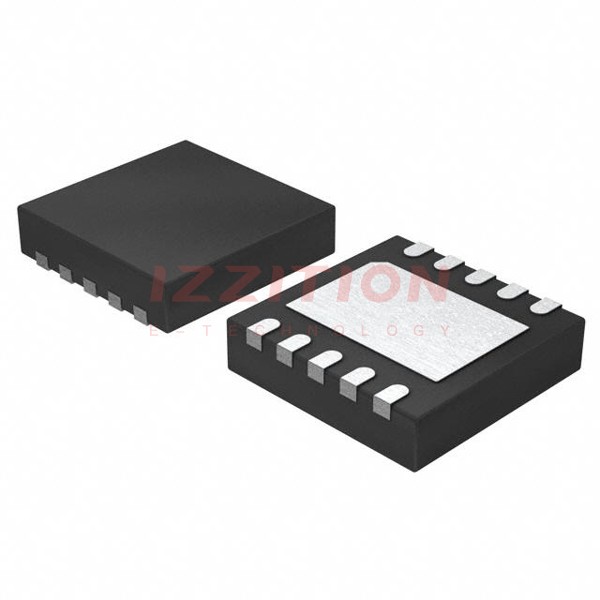

| Part Number | ADG787BCPZ-REEL | ADG788BCPZ-REEL | ADG781BCPZ-REEL | ADG783BCPZ-REEL | ADG784BCPZ-REEL | ADG787BCBZ-REEL |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Switch Circuit | SPDT | SPDT | SPST - NC | SPST - NO/NC | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 1:1 | 1:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 4 | 4 | 4 | 4 | 2 |
| On-State Resistance (Max) | 3Ohm | 4.5Ohm | 4Ohm | 4Ohm | 2.2Ohm (Typ) | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm | - | - | - | 150mOhm | 20mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 3.3V, 5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | ±2.5V | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 19ns, 5ns | 21ns, 10ns (Typ) | 11ns, 6ns (Typ) | 11ns, 6ns (Typ) | - | 19ns, 5ns |
| -3db Bandwidth | 145MHz | 160MHz | 200MHz | 200MHz | 240MHz | 145MHz |
| Charge Injection | 14pC | 5pC | 3pC | 3pC | 10pC | 14pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF | 11pF | 10pF, 10pF | 10pF, 10pF | 10pF, 20pF | 16pF |
| Current - Leakage (IS(off)) (Max) | 50pA (Typ) | 100pA | 100pA | 100pA | 500pA | 50pA (Typ) |
| Crosstalk | -110dB @ 1MHz | -80dB @ 1MHz | -90dB @ 10MHz | -90dB @ 10MHz | -75dB @ 10MHz | -110dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 10-UFBGA, WLCSP |
| Supplier Device Package | 10-LFCSP-WD (3x3) | 20-LFCSP (4x4) | 20-LFCSP (4x4) | 20-LFCSP (4x4) | 20-LFCSP (4x4) | 10-WLCSP (2x1.5) |
