Please send RFQ , we will respond immediately.
| Part Number | ADG787BCBZ-500RL7 | ADG787BCPZ-500RL7 | ADG787BCB-500RL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Number of Circuits | 2 | 2 | 2 |
| On-State Resistance (Max) | 3Ohm | 3Ohm | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm | 20mOhm | 20mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | 19ns, 5ns | 19ns, 5ns | 19ns, 5ns |
| -3db Bandwidth | 145MHz | 145MHz | 145MHz |
| Charge Injection | 14pC | 14pC | 14pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF | 16pF | 16pF |
| Current - Leakage (IS(off)) (Max) | 50pA (Typ) | 50pA (Typ) | 50pA (Typ) |
| Crosstalk | -110dB @ 1MHz | -110dB @ 1MHz | -110dB @ 1MHz |
| Operating Temperature | -25°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

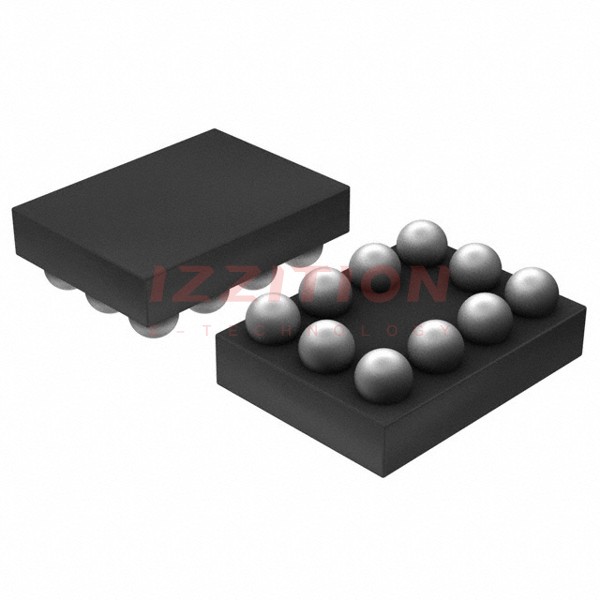

| Package / Case | 10-UFBGA, WLCSP | 10-VFDFN Exposed Pad, CSP | 10-UFBGA, WLCSP |
| Supplier Device Package | 10-WLCSP (2x1.5) | 10-LFCSP-WD (3x3) | 10-WLCSP (2x1.5) |
