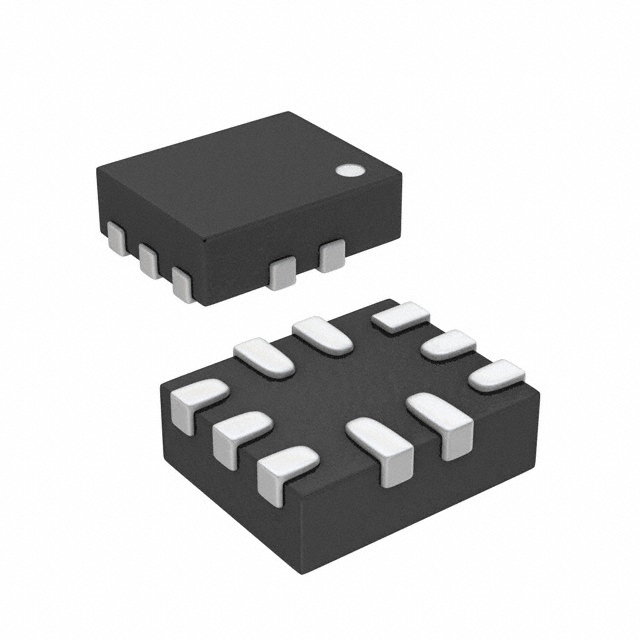

| Part Number | ADG772BCPZ-REEL | ADG772BCPZ-REEL7 | ADG732BCPZ-REEL | ADG772BCPZ-1REEL |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active | Active |
| Switch Circuit | SPDT | SPDT | - | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 32:1 | 2:1 |
| Number of Circuits | 2 | 2 | 1 | 2 |
| On-State Resistance (Max) | 6.7Ohm (Typ) | 6.7Ohm (Typ) | 5.5Ohm | 6.7Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 40mOhm | 40mOhm | - | 40mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 1.8V ~ 5.5V | 2.7V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | ±2.5V | - |
| Switch Time (Ton, Toff) (Max) | 12.5ns, 9.5ns | 12.5ns, 9.5ns | - | 12.5ns, 9.5ns |
| -3db Bandwidth | 630MHz | 630MHz | 18MHz | 630MHz |
| Charge Injection | 0.5pC | 0.5pC | 1pC | 0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 2.4pF, 6.9pF | 2.4pF, 6.9pF | 13pF, 275pF | 2.4pF, 6.9pF |
| Current - Leakage (IS(off)) (Max) | 200pA | 200pA | 250pA | 200pA |
| Crosstalk | -90dB @ 1MHz | -90dB @ 1MHz | -72dB @ 1MHz | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFQFN, CSP | 10-UFQFN, CSP | 48-VFQFN Exposed Pad, CSP | 12-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 10-LFCSP-UQ (1.6x1.3) | 10-LFCSP-UQ (1.6x1.3) | 48-LFCSP-VQ (7x7) | 12-LFCSP (3x3) |
