| Part Number | ADG731BCPZ-REEL7 | ADG731BCPZ-REEL |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Switch Circuit | - | - |
| Multiplexer/Demultiplexer Circuit | 32:1 | 32:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 5.5Ohm | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V | ±2.5V |
| Switch Time (Ton, Toff) (Max) | - | - |
| -3db Bandwidth | 18MHz | 18MHz |
| Charge Injection | 1pC | 1pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 260pF | 13pF, 260pF |
| Current - Leakage (IS(off)) (Max) | 250pA | 250pA |
| Crosstalk | -72dB @ 1MHz | -72dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

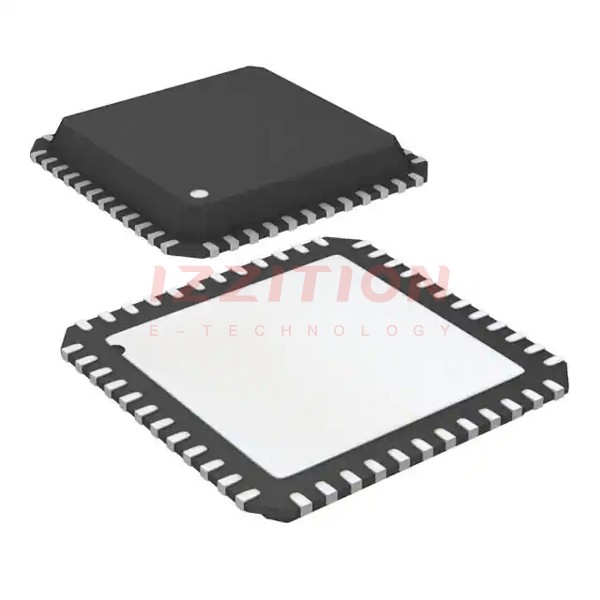

| Package / Case | 48-WFQFN Exposed Pad, CSP | 48-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 48-LFCSP (7x7) | 48-LFCSP (7x7) |
