| Part Number | ADG723ACPZ-REEL | ADG723ACPZ-REEL7 |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | SPST - NO/NC | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 |
| On-State Resistance (Max) | 4Ohm | 4Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm | 300mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 6ns (Typ) | 14ns, 6ns (Typ) |
| -3db Bandwidth | 200MHz | 200MHz |
| Charge Injection | 2pC | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF, 7pF | 7pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) | 10pA (Typ) |
| Crosstalk | -97dB @ 1MHz | -97dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

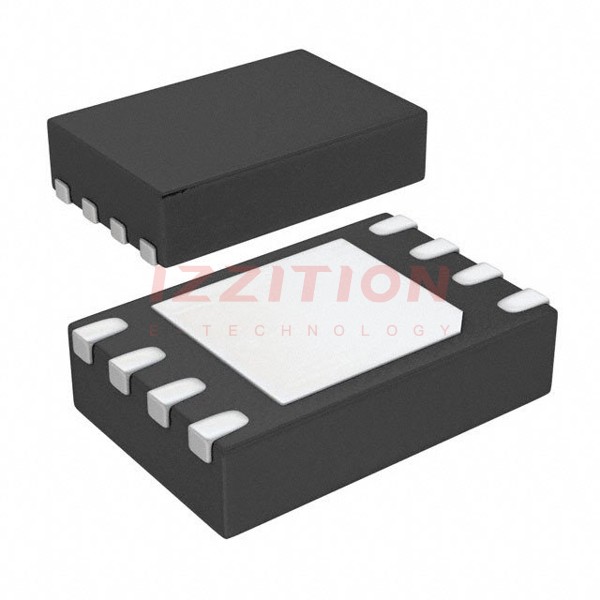

| Package / Case | 8-WFDFN Exposed Pad, CSP | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (2x3) | 8-LFCSP-WD (2x3) |
