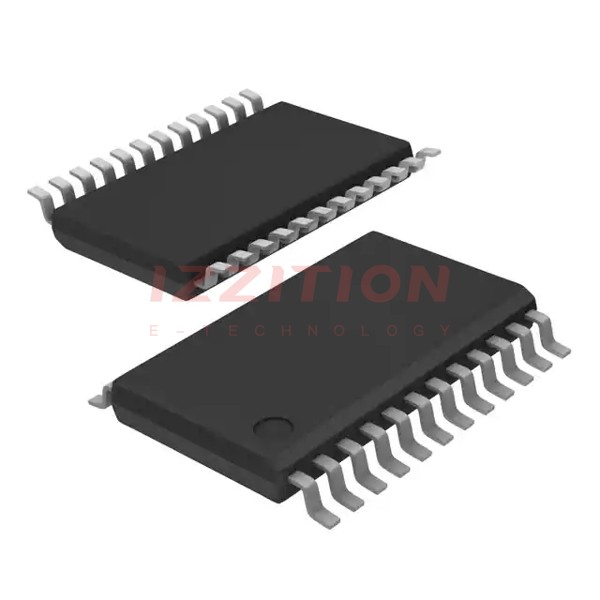

| Part Number | ADG714BRUZ | ADG715BRUZ | ADG734BRUZ | ADG711BRUZ | ADG712BRUZ | ADG713BRUZ | ADG714BRU |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPDT | SPST - NO | SPST - NO | SPST - NO/NC | - |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 2:1 | 1:1 | 1:1 | 1:1 | - |
| Number of Circuits | 8 | 8 | 4 | 4 | 4 | 4 | - |
| On-State Resistance (Max) | 4.5Ohm | 4.5Ohm | 4.5Ohm | 4Ohm | 4Ohm | 4Ohm | - |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - | - | - |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | - |
| Voltage - Supply, Dual (V±) | ±2.5V | ±2.5V | ±2.5V | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 20ns, 8ns (Typ) | 20ns, 8ns (Typ) | 21ns, 10ns (Typ) | 11ns, 6ns (Typ) | 11ns, 6ns (Typ) | 11ns, 6ns (Typ) | - |
| -3db Bandwidth | 155MHz | 155MHz | 200MHz | 200MHz | 200MHz | 200MHz | - |
| Charge Injection | 3pC | 3pC | 5pC | 3pC | 3pC | 3pC | - |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 11pF | 11pF, 11pF | 11pF | 10pF, 10pF | 10pF, 10pF | 10pF, 10pF | - |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA | 100pA | 100pA | 100pA | - |
| Crosstalk | -90dB @ 1MHz | -90dB @ 1MHz | -67dB @ 1MHz | -90dB @ 10MHz | -90dB @ 10MHz | -90dB @ 10MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP | 24-TSSOP | 20-TSSOP | 16-TSSOP | 16-TSSOP | 16-TSSOP | 24-TSSOP |
