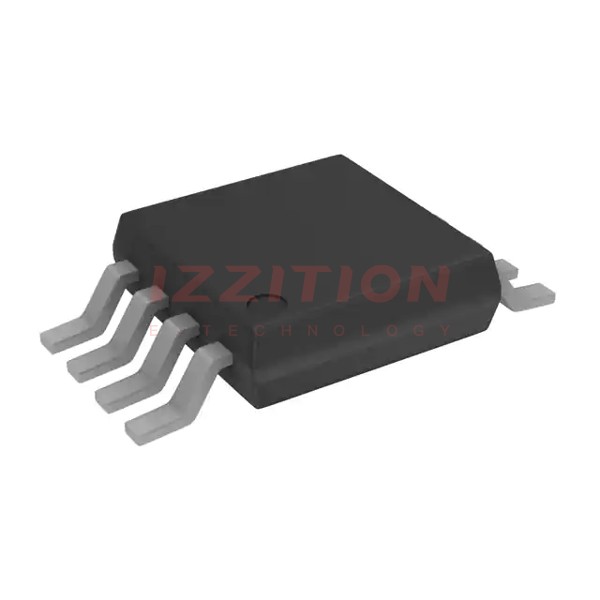

| Part Number | ADG701BRM-REEL | ADG701BRM-REEL7 | ADG702BRM-REEL | ADG701LBRM-REEL | ADG704BRM-REEL | ADG701BRJ-REEL |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | - | SPST - NC | SPST - NO | SP4T | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | - | 1:1 | 1:1 | 4:1 | 1:1 |
| Number of Circuits | 1 | - | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | 3Ohm | - | 3Ohm | 3Ohm | 4Ohm | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5V | - | 1.8V ~ 5V | 1.8V ~ 5V | 1.8V ~ 5V | 1.8V ~ 5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 12ns, 8ns (Typ) | - | 12ns, 8ns (Typ) | 12ns, 8ns (Typ) | 14ns, 6ns (Typ) | 12ns, 8ns (Typ) |
| -3db Bandwidth | 200MHz | - | 200MHz | 200MHz | 200MHz | 200MHz |
| Charge Injection | 5pC | - | 5pC | 5pC | 3pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF | - | 17pF, 17pF | 17pF, 17pF | 9pF, 37pF | 17pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) | - | 10pA (Typ) | 250pA | 100pA | 10pA (Typ) |
| Crosstalk | - | - | - | - | -82dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | - | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | SC-74A, SOT-753 |
| Supplier Device Package | 8-MSOP | 8-MSOP | 8-MSOP | 8-MSOP | 10-MSOP | SOT-23-5 |
