Please send RFQ , we will respond immediately.

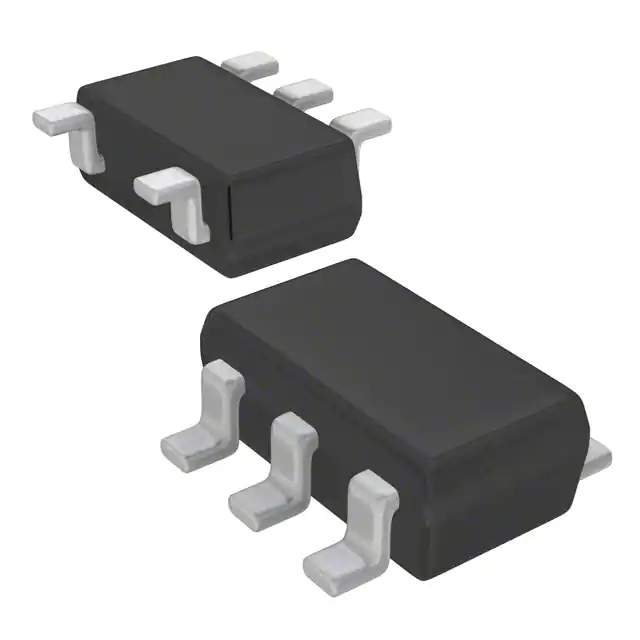

| Part Number | ADG701BRJZ-REEL7 | ADG701BRTZ-REEL7 | ADG702BRJZ-REEL7 | ADG701LBRJZ-REEL7 | ADG701BRMZ-REEL7 | ADG701BRJ-REEL7 | ADG701BRJZ-REEL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NC | SPST - NO | SPST - NO | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| On-State Resistance (Max) | 3Ohm | 3Ohm | 3Ohm | 3Ohm | 3Ohm | 3Ohm | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - | - | - |
| Voltage - Supply, Single (V+) | 1.8V ~ 5V | 1.8V ~ 5V | 1.8V ~ 5V | 1.8V ~ 5V | 1.8V ~ 5V | 1.8V ~ 5V | 1.8V ~ 5V |
| Voltage - Supply, Dual (V±) | - | - | - | - | - | - | - |
| Switch Time (Ton, Toff) (Max) | 12ns, 8ns (Typ) | 12ns, 8ns (Typ) | 12ns, 8ns (Typ) | 12ns, 8ns (Typ) | 12ns, 8ns (Typ) | 12ns, 8ns (Typ) | 12ns, 8ns (Typ) |
| -3db Bandwidth | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz | 200MHz |
| Charge Injection | 5pC | 5pC | 5pC | 5pC | 5pC | 5pC | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF | 17pF, 17pF | 17pF, 17pF | 17pF, 17pF | 17pF, 17pF | 17pF, 17pF | 17pF, 17pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) | 10pA (Typ) | 10pA (Typ) | 250pA | 10pA (Typ) | 10pA (Typ) | 10pA (Typ) |
| Crosstalk | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-74A, SOT-753 | SOT-23-6 | SC-74A, SOT-753 | SC-74A, SOT-753 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 | SOT-23-6 | SOT-23-5 | SOT-23-5 | 8-MSOP | SOT-23-5 | SOT-23-5 |
