| Part Number | ADG659YCPZ | ADG658YCPZ | ADG659YCP |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete |
| Switch Circuit | SP4T | - | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 8:1 | - |
| Number of Circuits | 2 | 1 | - |
| On-State Resistance (Max) | 75Ohm | 75Ohm | - |
| Channel-to-Channel Matching (ΔRon) | 1.3Ohm | 1.3Ohm | - |
| Voltage - Supply, Single (V+) | 2V ~ 12V | 2V ~ 12V | - |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V | ±2V ~ 6V | - |
| Switch Time (Ton, Toff) (Max) | 115ns, 45ns | 115ns, 45ns | - |
| -3db Bandwidth | 400MHz | 210MHz | - |
| Charge Injection | 2pC | 2pC | - |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 12pF | 4pF, 23pF | - |
| Current - Leakage (IS(off)) (Max) | 200pA | 200pA | - |
| Crosstalk | -90dB @ 1MHz | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

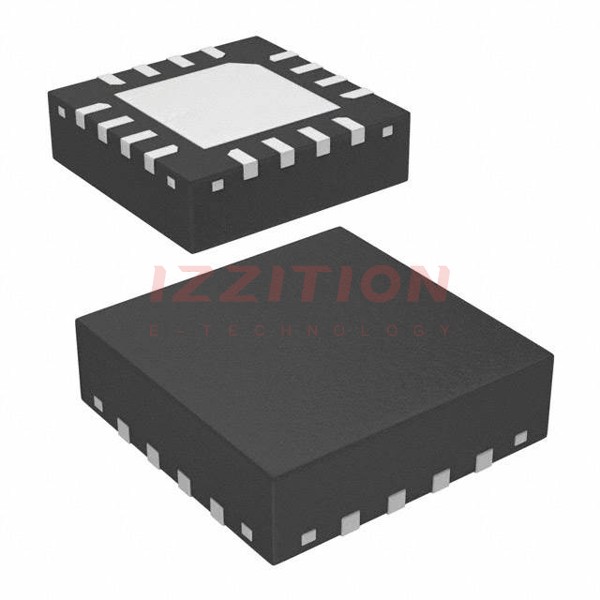

| Package / Case | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) |
