| Part Number | ADG633YCPZ-REEL7 | ADG633YCP-REEL7 |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete |
| Switch Circuit | SPDT | - |
| Multiplexer/Demultiplexer Circuit | 2:1 | - |
| Number of Circuits | 3 | - |
| On-State Resistance (Max) | 75Ohm | - |
| Channel-to-Channel Matching (ΔRon) | 800mOhm | - |
| Voltage - Supply, Single (V+) | 2V ~ 12V | - |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V | - |
| Switch Time (Ton, Toff) (Max) | 95ns, 40ns | - |
| -3db Bandwidth | 580MHz | - |
| Charge Injection | 2pC | - |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 7pF | - |
| Current - Leakage (IS(off)) (Max) | 200pA | - |
| Crosstalk | -90dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount |

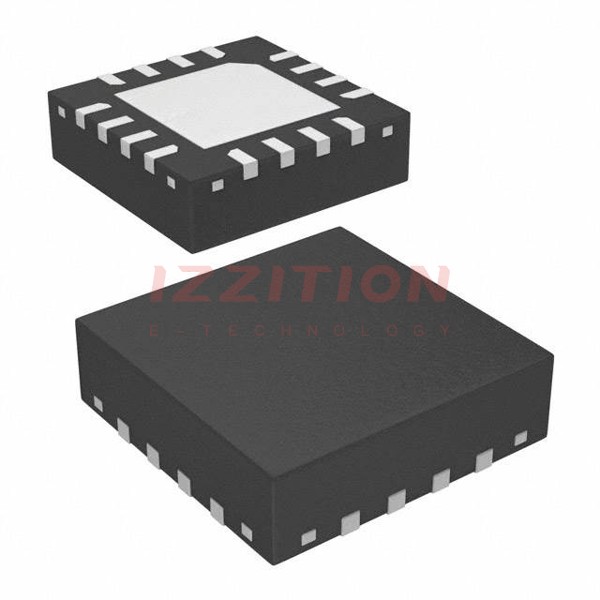

| Package / Case | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) |
