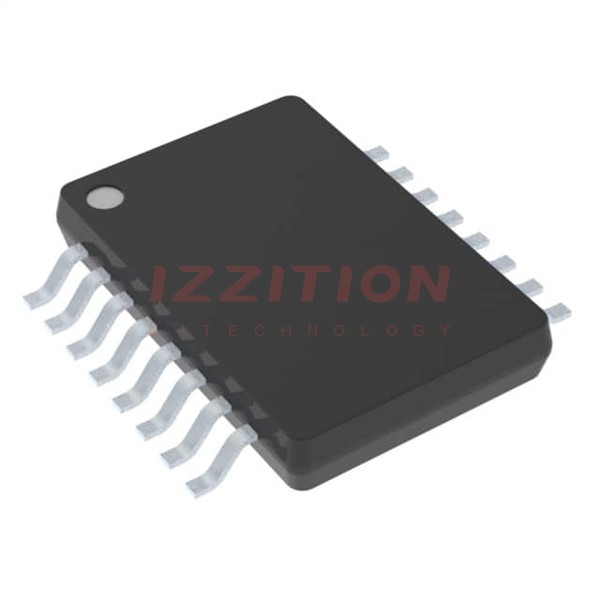

| Part Number | ADG5434BRUZ | ADG5436BRUZ | ADG5404BRUZ | ADG5433BRUZ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | SPDT | SPDT | - | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 4:1 | 2:1 |
| Number of Circuits | 4 | 2 | 1 | 3 |
| On-State Resistance (Max) | 14Ohm | 10Ohm | 10Ohm | 14Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm | 350mOhm | 350mOhm | 300mOhm |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 186ns, 104ns | 213ns, 152ns | 185ns, 142ns | 186ns, 104ns |
| -3db Bandwidth | 140MHz | 100MHz | 54MHz | 140MHz |
| Charge Injection | 176pC | 250pC | 290pC | 176pC |
| Channel Capacitance (CS(off), CD(off)) | 15pF, 23pF | 18pF, 63pF | 18pF, 88pF | 15pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 250pA | 250pA | 250pA | 250pA |
| Crosstalk | -60dB @ 1MHz | -58dB @ 1MHz | -58dB @ 1MHz | -60dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 16-TSSOP | 14-TSSOP | 16-TSSOP |
