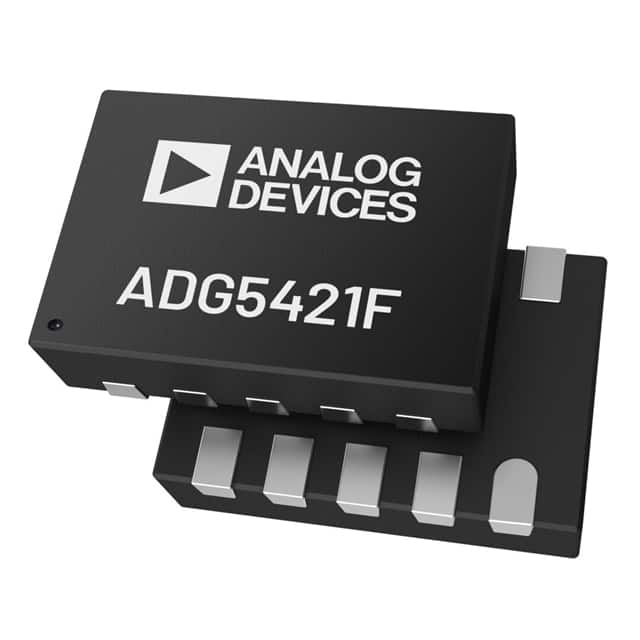

| Part Number | ADG5421FBCPZ-RL7 | ADG5401FBCPZ-RL7 | ADG5421BCPZ-RL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | SPST - NC | SPST - NC | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 1 | 2 |
| On-State Resistance (Max) | 14Ohm | 6Ohm (Typ) | 14Ohm |
| Channel-to-Channel Matching (ΔRon) | 20mOhm | - | 100mOhm |
| Voltage - Supply, Single (V+) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 15.9µs, 160ns | 10.2µs, 360ns | 199ns, 184ns |
| -3db Bandwidth | 630MHz | 395MHz | 250MHz |
| Charge Injection | -150pC | -230pC | 120pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 5pF | 9pF, 11pF | 11pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 200pA | 100pA (Typ) | 250pA |
| Crosstalk | -78dB @ 1MHz | - | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN, CSP | 10-WFDFN, CSP | 10-VFDFN Exposed Pad, CSP |
| Supplier Device Package | 10-LFCSP (3x2) | 10-LFCSP (3x2) | 10-LFCSP-WD (3x3) |
