| Part Number | ADG5421BCPZ-RL7 | ADG5423BCPZ-RL7 | ADG5421FBCPZ-RL7 | ADG5401BCPZ-RL7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO | SPST - NC | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 | 2 | 1 |
| On-State Resistance (Max) | 14Ohm | 14Ohm | 14Ohm | 7Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm | 100mOhm | 20mOhm | - |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V | 8V ~ 44V, ±5V ~ 22V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V | 8V ~ 44V, ±5V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 199ns, 184ns | 199ns, 184ns | 15.9µs, 160ns | 21ns, 23ns |
| -3db Bandwidth | 250MHz | 250MHz | 630MHz | 170MHz |
| Charge Injection | 120pC | 120pC | -150pC | 275pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 12pF | 11pF, 12pF | 6pF, 5pF | 21pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 250pA | 250pA | 200pA | 500pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -78dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

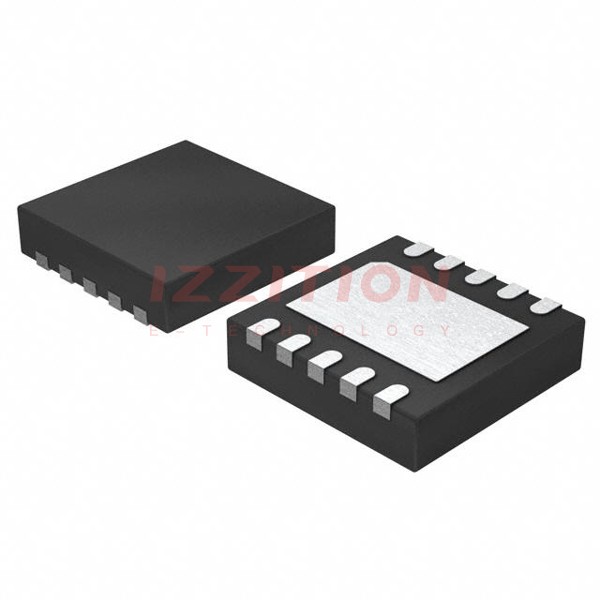

| Package / Case | 10-VFDFN Exposed Pad, CSP | 10-VFDFN Exposed Pad, CSP | 10-WFDFN, CSP | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 10-LFCSP-WD (3x3) | 10-LFCSP-WD (3x3) | 10-LFCSP (3x2) | 8-LFCSP-WD (2x3) |
