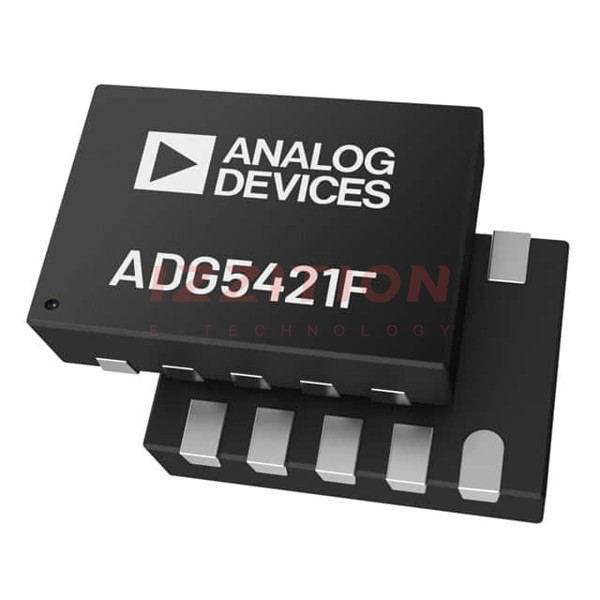

| Part Number | ADG5401FBCPZ-RL7 | ADG5421FBCPZ-RL7 | ADG5404FBCPZ-RL7 | ADG5401BCPZ-RL7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | SPST - NC | SPST - NC | - | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 4:1 | 1:1 |
| Number of Circuits | 1 | 2 | 1 | 1 |
| On-State Resistance (Max) | 6Ohm (Typ) | 14Ohm | 11.5Ohm | 7Ohm |
| Channel-to-Channel Matching (ΔRon) | - | 20mOhm | 650mOhm | - |
| Voltage - Supply, Single (V+) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | 8V ~ 44V, ±5V ~ 22V | 8V ~ 44V, ±5V ~ 22V | ±5V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 10.2µs, 360ns | 15.9µs, 160ns | 535ns, 205ns | 21ns, 23ns |
| -3db Bandwidth | 395MHz | 630MHz | 110MHz | 170MHz |
| Charge Injection | -230pC | -150pC | 695pC | 275pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 11pF | 6pF, 5pF | 11pF, 47pF | 21pF, 23pF |
| Current - Leakage (IS(off)) (Max) | 100pA (Typ) | 200pA | 500pA | 500pA |
| Crosstalk | - | -78dB @ 1MHz | -73dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-WFDFN, CSP | 10-WFDFN, CSP | 16-WQFN Exposed Pad, CSP | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 10-LFCSP (3x2) | 10-LFCSP (3x2) | 16-LFCSP-WQ (4x4) | 8-LFCSP-WD (2x3) |
