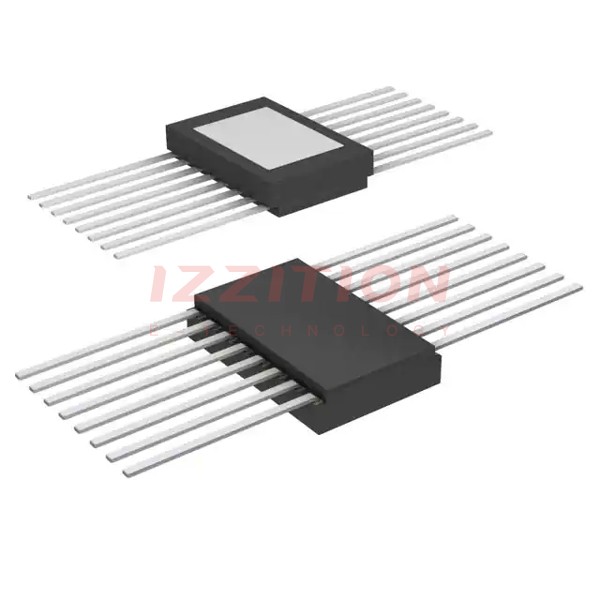

| Part Number | ADG5298HFZ | ADG5298HFRZ |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Switch Circuit | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 8:1 |
| Number of Circuits | 1 | 1 |
| On-State Resistance (Max) | 350Ohm | 350Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.5Ohm | 1.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 245ns, 260ns | 245ns, 260ns |
| -3db Bandwidth | 121MHz | 121MHz |
| Charge Injection | 0.4pC | 0.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 33pF | 2.8pF, 33pF |
| Current - Leakage (IS(off)) (Max) | 8nA | 8nA |
| Crosstalk | -80dB @ 1MHz | -80dB @ 1MHz |
| Operating Temperature | -55°C ~ 210°C (TA) | -55°C ~ 210°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 16-CFlatPack | 16-CFlatPack |
| Supplier Device Package | 16-CFlatPack | 16-CFlatPack |
