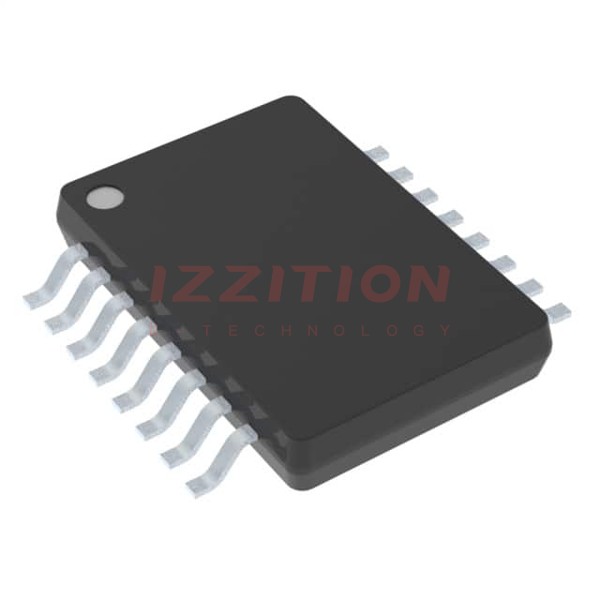

| Part Number | ADG5249FBRUZ | ADG5209FBRUZ | ADG5243FBRUZ | ADG5248FBRUZ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | SP4T | SP4T | SPDT | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 2:1 | 8:1 |
| Number of Circuits | 2 | 2 | 3 | 1 |
| On-State Resistance (Max) | 335Ohm | 160Ohm | 335Ohm | 335Ohm |
| Channel-to-Channel Matching (ΔRon) | 3Ohm | 3.5Ohm | 3Ohm | 3Ohm |
| Voltage - Supply, Single (V+) | 8V ~ 44V | 9V ~ 40V | 8V ~ 44V | 8V ~ 44V |
| Voltage - Supply, Dual (V±) | ±5V ~ 22V | ±9V ~ 22V | ±5V ~ 22V | ±5V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 245ns, 135ns | 140ns, 185ns | 215ns, 85ns | 245ns, 135ns |
| -3db Bandwidth | 320MHz | 130MHz | 350MHz | 200MHz |
| Charge Injection | -1.2pC | 0.4pC | -1.4pC | -1.2pC |
| Channel Capacitance (CS(off), CD(off)) | 4pF, 7pF | 2.8pF, 17pF | - | 4pF, 13pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 100pA | 1nA | 1nA |
| Crosstalk | -75dB @ 1MHz | -90dB @ 1MHz | -85dB @ 1MHz | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 16-TSSOP | 20-TSSOP | 20-TSSOP |
