| Part Number | ADG5233BCPZ-RL7 | ADG5234BCPZ-RL7 | ADG5236BCPZ-RL7 | ADG5213BCPZ-RL7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | SPDT | SPDT | SPDT | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 1:1 |
| Number of Circuits | 3 | 4 | 2 | 4 |
| On-State Resistance (Max) | 160Ohm | 160Ohm | 160Ohm | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 1.3Ohm | 1.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 200ns, 95ns | 200ns, 95ns | 190ns, 180ns | 195ns, 165ns |
| -3db Bandwidth | 370MHz | 370MHz | 266MHz | 460MHz |
| Charge Injection | 0.7pC | 0.7pC | -0.6pC | -0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 4.5pF, 10pF | 4.5pF, 10pF | 2.5pF, 12pF | 2.8pF, 4.8pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA | 100pA |
| Crosstalk | -80dB @ 1MHz | -80dB @ 1MHz | -85dB @ 1MHz | -105dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

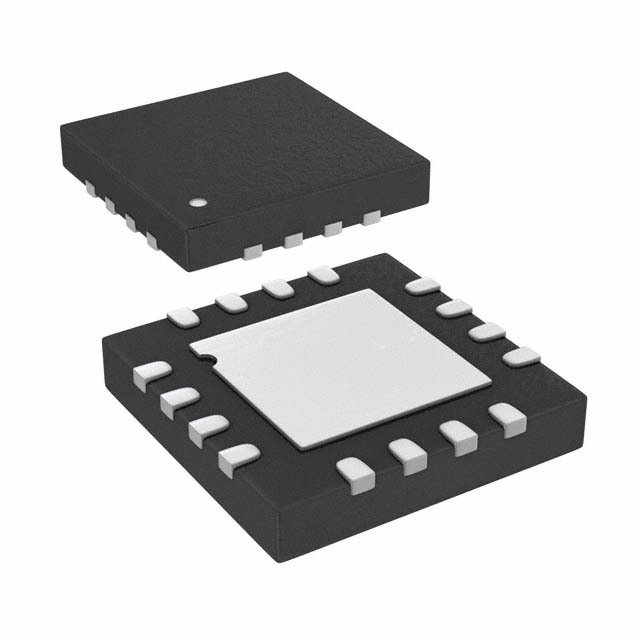

| Package / Case | 16-WQFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (4x4) | 20-LFCSP (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) |
