| Part Number | ADG5208FBCPZ-RL7 | ADG5209FBCPZ-RL7 | ADG5248FBCPZ-RL7 | ADG5208BCPZ-RL7 |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | - | SP4T | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 | 8:1 | 8:1 |
| Number of Circuits | 1 | 2 | 1 | 1 |
| On-State Resistance (Max) | 160Ohm | 160Ohm | 335Ohm | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 3Ohm | 3.5Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V | 8V ~ 44V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V | ±5V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 170ns, 140ns | 140ns, 185ns | 245ns, 135ns | 170ns, 140ns |
| -3db Bandwidth | 60MHz | 130MHz | 200MHz | 60MHz |
| Charge Injection | 0.3pC | 0.4pC | -1.2pC | 0.3pC |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 33pF | 4pF, 8pF | 4pF, 13pF | 2.8pF, 33pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 1nA | 1nA | 100pA |
| Crosstalk | -90dB @ 1MHz | - | -75dB @ 1MHz | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

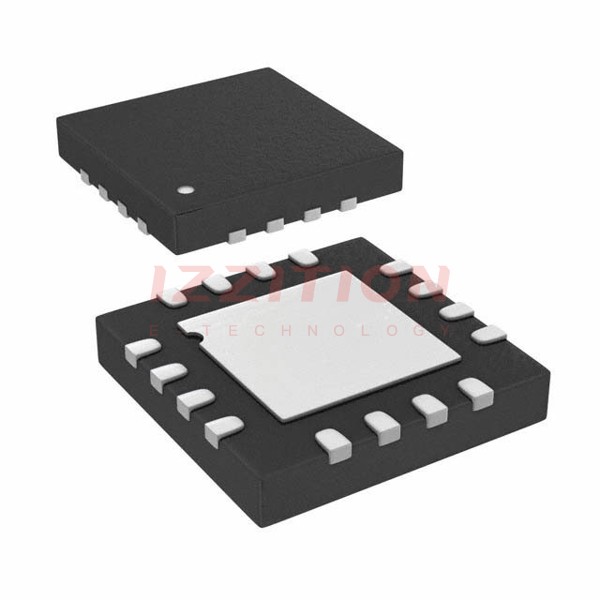

| Package / Case | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 20-LFCSP (4x4) | 16-LFCSP-WQ (4x4) |
