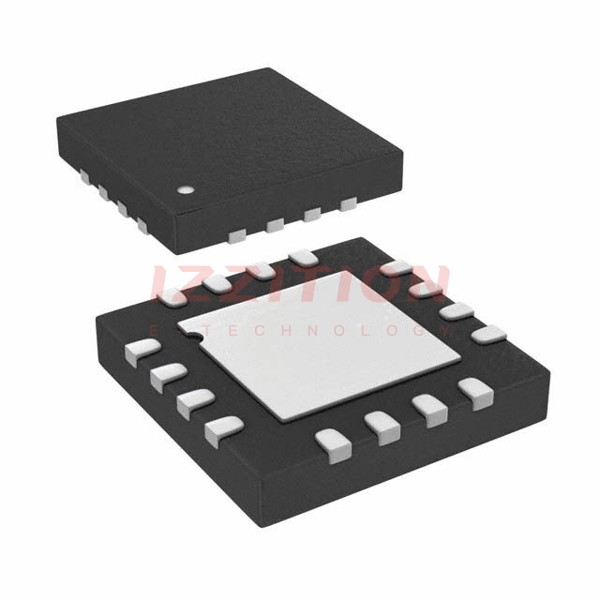

| Part Number | ADG5208BCPZ-RL7 | ADG5209BCPZ-RL7 | ADG5208FBCPZ-RL7 | ADG5204BCPZ-RL7 | ADG5206BCPZ-RL7 | ADG5207BCPZ-RL7 |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Switch Circuit | - | SP4T | - | SP4T | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 | 8:1 | 4:1 | 16:1 | 8:1 |
| Number of Circuits | 1 | 2 | 1 | 1 | 1 | 2 |
| On-State Resistance (Max) | 160Ohm | 160Ohm | 160Ohm | 160Ohm | 160Ohm | 160Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 3.5Ohm | 4.5Ohm | 4Ohm | 4Ohm |
| Voltage - Supply, Single (V+) | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V | 9V ~ 40V |
| Voltage - Supply, Dual (V±) | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V | ±9V ~ 22V |
| Switch Time (Ton, Toff) (Max) | 170ns, 140ns | 140ns, 185ns | 170ns, 140ns | 185ns, 175ns | 230ns, 185ns | 230ns, 185ns |
| -3db Bandwidth | 60MHz | 130MHz | 60MHz | 150MHz | 65MHz | 145MHz |
| Charge Injection | 0.3pC | 0.4pC | 0.3pC | -0.6pC | 0.45pC | 0.45pC |
| Channel Capacitance (CS(off), CD(off)) | 2.8pF, 33pF | 2.8pF, 17pF | 2.8pF, 33pF | 3pF, 26pF | 3.3pf, 62pF | 3.3pf, 32pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA | 100pA | 100pA | 100pA |
| Crosstalk | -90dB @ 1MHz | -90dB @ 1MHz | -90dB @ 1MHz | -80dB @ 1MHz | -76dB @ 1MHz | -76dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 16-WQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 16-LFCSP-WQ (4x4) | 32-LFCSP (5x5) | 32-LFCSP (5x5) |
