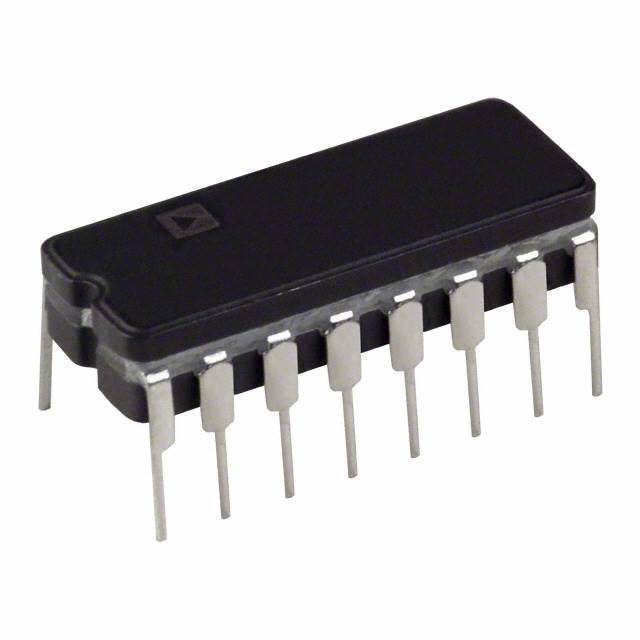

ADG512TQ Image
×
Favorite
Compare
Add to RFQ
Share:
Analog Devices Inc. ADG512TQ
Manufacturer No:
ADG512TQ
Manufacturer:
Analog Devices Inc.
Package:
Tube
Datasheet:
ADG512TQ Datasheet
ECAD Model:
-
Description:
IC SWITCH QUAD SPST 16CDIP
Delivery:
Payment:
Product Attributes
Switch Circuit:
SPST - NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
4
On-State Resistance (Max):
30Ohm (Typ)
Channel-to-Channel Matching (ΔRon):
-
Voltage - Supply, Single (V+):
3V ~ 5.5V
Voltage - Supply, Dual (V±):
±4.5V ~ 5.5V
Switch Time (Ton, Toff) (Max):
200ns, 120ns (Typ)
-3db Bandwidth:
-
Charge Injection:
11pC
Channel Capacitance (CS(off), CD(off)):
9pF, 9pF
Current - Leakage (IS(off)) (Max):
100pA
Crosstalk:
-85dB @ 1MHz
Operating Temperature:
-55°C ~ 125°C (TA)
Mounting Type:
Through Hole
Package / Case:
16-CDIP (0.300", 7.62mm)
Supplier Device Package:
16-CERDIP
0
Remaining
View Similar
In Stock
UnitPrice:
$8.95
Quantity:
13
