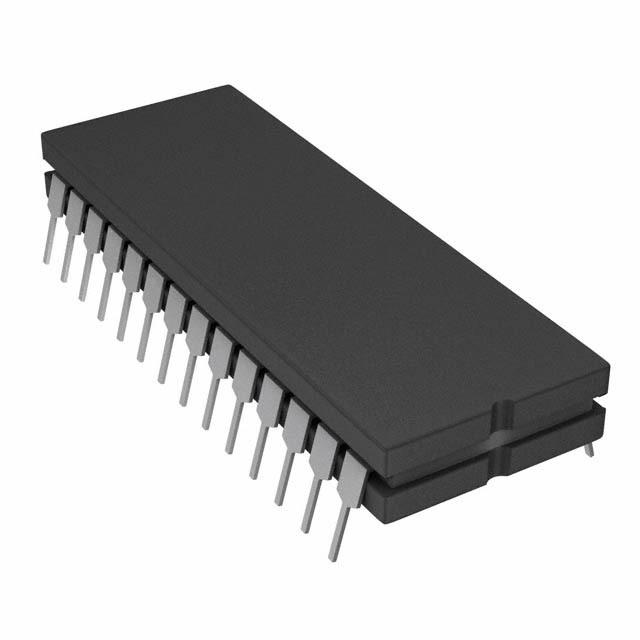

| Part Number | ADG506ATQ/883B | ADG509ATQ/883B | ADG506ATE/883B |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | - | SP4T | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 4:1 | 16:1 |
| Number of Circuits | 1 | 2 | 1 |
| On-State Resistance (Max) | 300Ohm | 450Ohm | 300Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Typ) | 22.5Ohm (Typ) | 15Ohm (Typ) |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | - | ±10.8V ~ 16.5V | - |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns | 300ns, 300ns | 300ns, 300ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 4pC | 4pC | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF | 5pF, 11pF | 5pF, 44pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA |
| Crosstalk | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Surface Mount |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 16-CDIP (0.300", 7.62mm) | 28-LCC |
| Supplier Device Package | 28-CDIP | 16-CERDIP | 28-LCC (11.43x11.43) |
