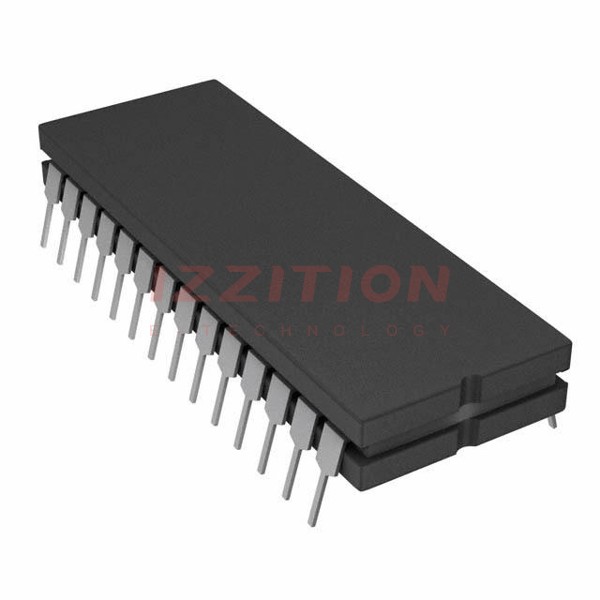

| Part Number | ADG506ABQ | ADG506ATQ | ADG507ABQ | ADG509ABQ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Obsolete | Obsolete |
| Switch Circuit | - | - | - | SP4T |
| Multiplexer/Demultiplexer Circuit | 16:1 | 16:1 | 16:1 | 4:1 |
| Number of Circuits | 1 | 1 | 1 | 2 |
| On-State Resistance (Max) | 300Ohm | 300Ohm | 300Ohm | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm | 15Ohm | 15Ohm | 22.5Ohm |
| Voltage - Supply, Single (V+) | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 10.8V ~ 16.5V | 10.8V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±10.8V ~ 16.5V | ±10.8V ~ 16.5V | ±10.8V ~ 16.5V | ±10.8V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns | 300ns, 300ns | 300ns, 300ns | 300ns, 300ns |
| -3db Bandwidth | - | - | - | - |
| Charge Injection | 4pC | 4pC | 4pC | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 44pF | 5pF, 44pF | 5pF, 44pF | 5pF, 11pF |
| Current - Leakage (IS(off)) (Max) | 1nA | 1nA | 1nA | 1nA |
| Crosstalk | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -55°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 28-CDIP (0.600", 15.24mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 28-CDIP | 28-CDIP | 28-CDIP | 16-CERDIP |
