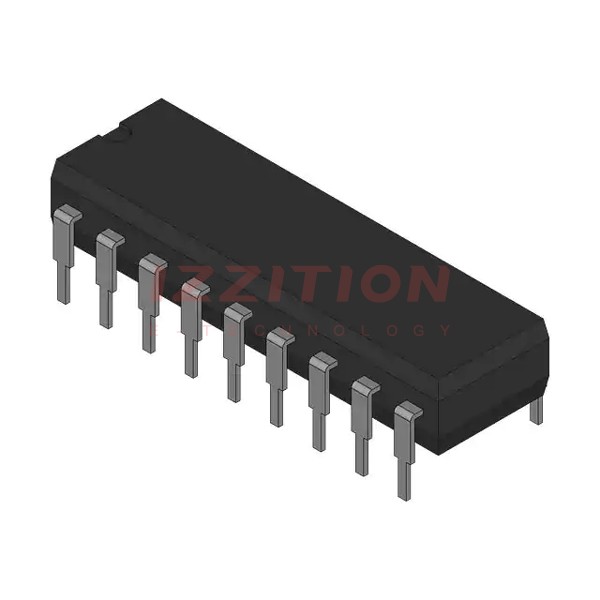

| Part Number | ADG429BN | ADG409BN | ADG419BN | ADG426BN | ADG428BN |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Circuit | SP4T | SP4T | SPDT | - | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 2:1 | 16:1 | 8:1 |
| Number of Circuits | 2 | 2 | 1 | 1 | 1 |
| On-State Resistance (Max) | 100Ohm | 100Ohm | 35Ohm | 80Ohm | 100Ohm |
| Channel-to-Channel Matching (ΔRon) | 10Ohm | 15Ohm (Max) | - | 4Ohm | 10Ohm |
| Voltage - Supply, Single (V+) | 12V, ±15V | 12V | 12V | 12V | 12V |
| Voltage - Supply, Dual (V±) | 12V, ±15V | ±15V | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns | - | - | 160ns, 150ns | 150ns, 150ns |
| -3db Bandwidth | - | - | - | - | - |
| Charge Injection | 4pC | 20pC | - | 8pC | 4pC |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 20pF | 11pF, 20pF | 6pF | 5pF, 50pF | 11pF, 40pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 500pA | 250pA | 500pA | 500pA |
| Crosstalk | -85dB @ 100kHz | -85dB @ 100kHz | -90dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 18-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 28-DIP (0.600", 15.24mm) | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package | 18-PDIP | 16-PDIP | 8-PDIP | 28-PDIP | 18-PDIP |
