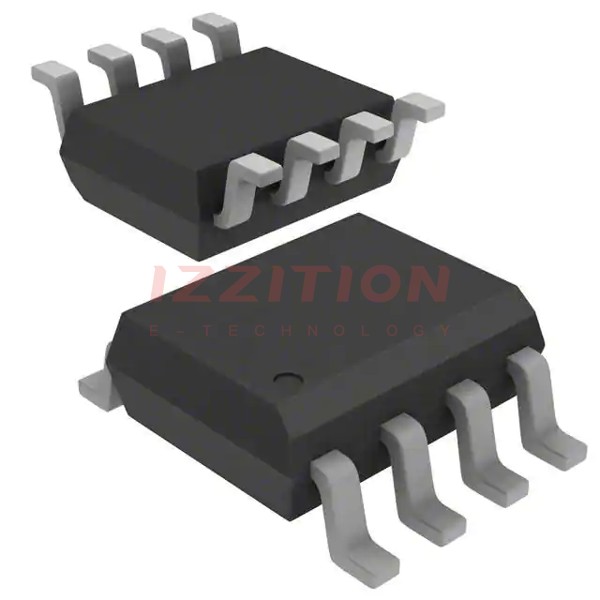

| Part Number | ADG417BRZ-REEL | ADG419BRZ-REEL | ADG411BRZ-REEL | ADG412BRZ-REEL | ADG413BRZ-REEL | ADG417BR-REEL |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Switch Circuit | SPST - NC | SPDT | SPST - NC | SPST - NO | SPST - NO/NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 2:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 | 4 | 4 | 4 | 1 |
| On-State Resistance (Max) | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 35Ohm | 35Ohm |
| Channel-to-Channel Matching (ΔRon) | - | - | - | - | - | - |
| Voltage - Supply, Single (V+) | 12V | 12V | 12V | 12V | 12V | 12V |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 160ns, 100ns | - | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | 160ns, 100ns |
| -3db Bandwidth | - | - | - | - | - | - |
| Charge Injection | 7pC | - | 5pC | 5pC | 5pC | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 6pF | 6pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | 6pF, 6pF |
| Current - Leakage (IS(off)) (Max) | 250pA | 250pA | 250pA | 250pA | 250pA | 250pA |
| Crosstalk | - | -90dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 16-SOIC | 16-SOIC | 16-SOIC | 8-SOIC |
