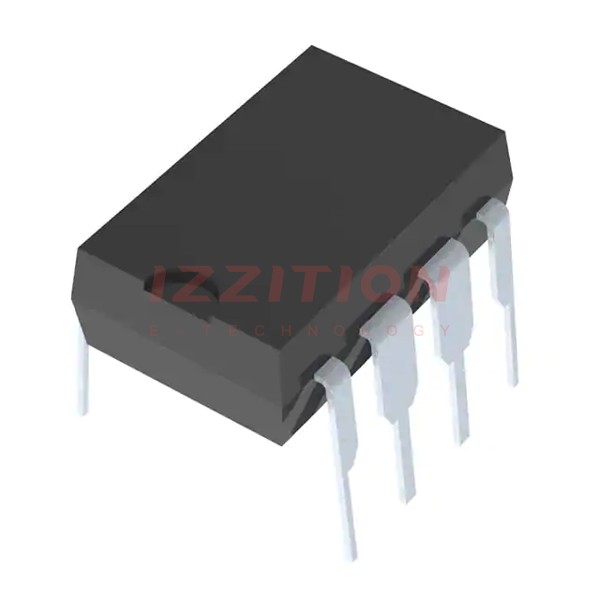

| Part Number | ADG417BNZ | ADG419BNZ | ADG417BRZ | ADG407BNZ | ADG411BNZ | ADG412BNZ | ADG413BNZ | ADG417BN |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete |
| Switch Circuit | SPST - NC | SPDT | SPST - NC | - | SPST - NC | SPST - NO | SPST - NO/NC | - |
| Multiplexer/Demultiplexer Circuit | 1:1 | 2:1 | 1:1 | 8:1 | 1:1 | 1:1 | 1:1 | - |
| Number of Circuits | 1 | 1 | 1 | 2 | 4 | 4 | 4 | - |
| On-State Resistance (Max) | 35Ohm | 35Ohm | 35Ohm | 80Ohm | 35Ohm | 35Ohm | 35Ohm | - |
| Channel-to-Channel Matching (ΔRon) | - | - | - | 4Ohm | - | - | - | - |
| Voltage - Supply, Single (V+) | 12V | 12V | 12V | 12V | 12V | 12V | 12V | - |
| Voltage - Supply, Dual (V±) | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V | ±15V | - |
| Switch Time (Ton, Toff) (Max) | 160ns, 100ns | - | 160ns, 100ns | 160ns, 150ns | 175ns, 145ns | 175ns, 145ns | 175ns, 145ns | - |
| -3db Bandwidth | - | - | - | - | - | - | - | - |
| Charge Injection | 7pC | - | 7pC | 8pC | 5pC | 5pC | 5pC | - |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 6pF | 6pF | 6pF, 6pF | 5pF, 25pF | 9pF, 9pF | 9pF, 9pF | 9pF, 9pF | - |
| Current - Leakage (IS(off)) (Max) | 250pA | 250pA | 250pA | 500pA | 250pA | 250pA | 250pA | - |
| Crosstalk | - | -90dB @ 1MHz | - | -85dB @ 100kHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) | 8-SOIC (0.154", 3.90mm Width) | 28-DIP (0.600", 15.24mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP | 8-PDIP | 8-SOIC | 28-PDIP | 16-PDIP | 16-PDIP | 16-PDIP | 8-PDIP |
