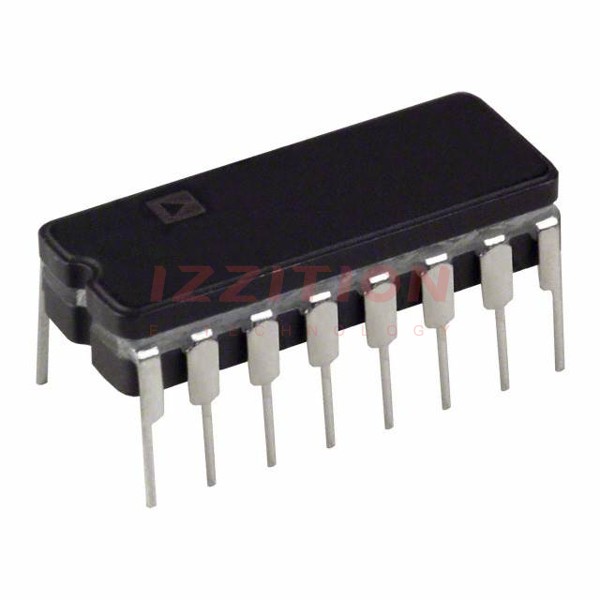

| Part Number | ADG221BQ | ADG222BQ |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active |
| Switch Circuit | - | SPST - NC |
| Multiplexer/Demultiplexer Circuit | - | 1:1 |
| Number of Circuits | - | 4 |
| On-State Resistance (Max) | - | 90Ohm |
| Channel-to-Channel Matching (ΔRon) | - | 4.5Ohm |
| Voltage - Supply, Single (V+) | - | ±15V |
| Voltage - Supply, Dual (V±) | - | ±15V |
| Switch Time (Ton, Toff) (Max) | - | 300ns, 250ns |
| -3db Bandwidth | - | - |
| Charge Injection | - | 20pC |
| Channel Capacitance (CS(off), CD(off)) | - | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | - | 2nA |
| Crosstalk | - | -80dB @ 100kHz |
| Operating Temperature | - | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP |
