| Part Number | ADG212AKP-REEL | ADG212AKR-REEL | ADG202AKP-REEL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Obsolete | Active |
| Switch Circuit | SPST - NC | SPST - NO | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 |
| On-State Resistance (Max) | 115Ohm | 115Ohm | 90Ohm |
| Channel-to-Channel Matching (ΔRon) | 5.75Ohm | 5.75Ohm | 4.5Ohm |
| Voltage - Supply, Single (V+) | 15V, ±15V | 15V | ±15V |
| Voltage - Supply, Dual (V±) | 15V, ±15V | ±15V | ±15V |
| Switch Time (Ton, Toff) (Max) | 600ns, 450ns | 600ns, 450ns | 300ns, 250ns |
| -3db Bandwidth | - | - | - |
| Charge Injection | 20pC | 20pC | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF | 5pF, 5pF | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 5nA | 5nA | 2nA |
| Crosstalk | -80dB @ 100kHz | -80dB @ 100kHz | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C (TA) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

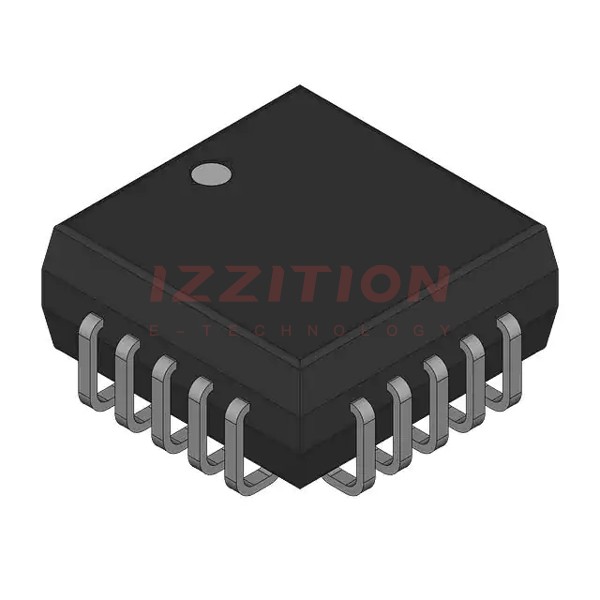

| Package / Case | 20-LCC (J-Lead) | 16-SOIC (0.154", 3.90mm Width) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (9x9) | 16-SOIC | 20-PLCC (8.97x8.97) |
