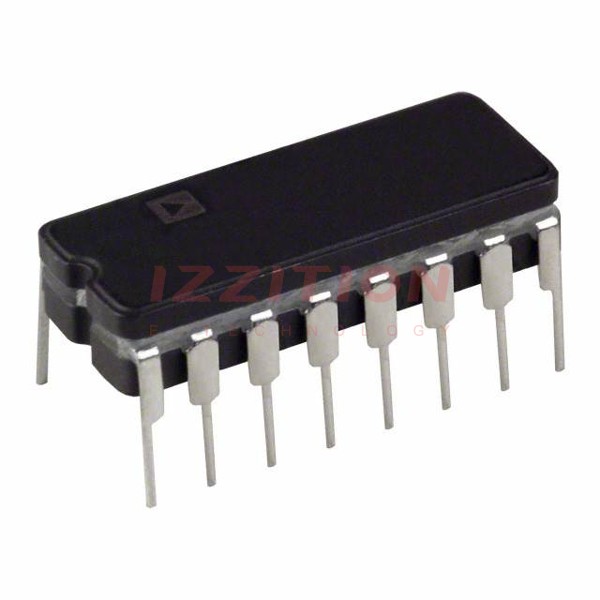

| Part Number | ADG202ATQ | ADG202ABQ |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Circuit | SPST - NO | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 |
| On-State Resistance (Max) | 90Ohm | 90Ohm |
| Channel-to-Channel Matching (ΔRon) | 4.5Ohm | 4.5Ohm |
| Voltage - Supply, Single (V+) | 10V ~ 15V | 10V ~ 15V |
| Voltage - Supply, Dual (V±) | ±10V ~ 15V | ±10V ~ 15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns | 300ns, 250ns |
| -3db Bandwidth | - | - |
| Charge Injection | 20pC | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF | 5pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 2nA |
| Crosstalk | -80dB @ 100kHz | -80dB @ 100kHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CERDIP | 16-CERDIP |
