Please send RFQ , we will respond immediately.

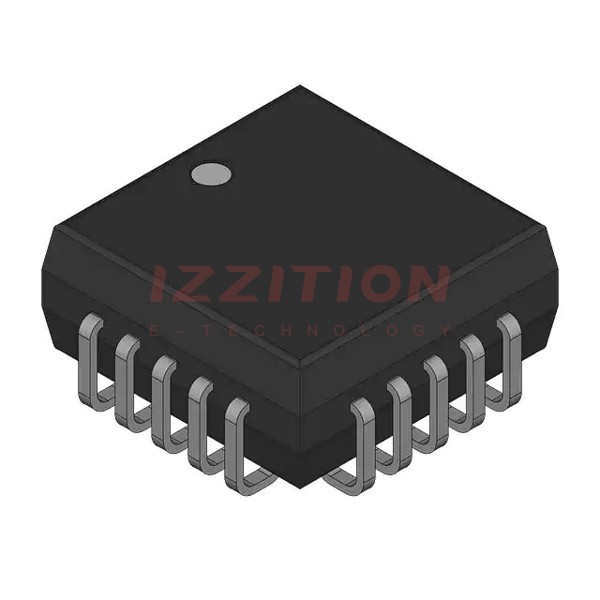

| Part Number | ADG202AKP-REEL | ADG212AKP-REEL |
|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active |
| Switch Circuit | SPST - NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 |
| On-State Resistance (Max) | 90Ohm | 115Ohm |
| Channel-to-Channel Matching (ΔRon) | 4.5Ohm | 5.75Ohm |
| Voltage - Supply, Single (V+) | ±15V | 15V, ±15V |
| Voltage - Supply, Dual (V±) | ±15V | 15V, ±15V |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns | 600ns, 450ns |
| -3db Bandwidth | - | - |
| Charge Injection | 20pC | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 5pF | 5pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 2nA | 5nA |
| Crosstalk | -80dB @ 100kHz | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) |
| Supplier Device Package | 20-PLCC (8.97x8.97) | 20-PLCC (9x9) |
