Home
All Products
Integrated Circuits (ICs)
Interface - Analog Switches, Multiplexers, Demultiplexers
ADG201HSJP-REEL

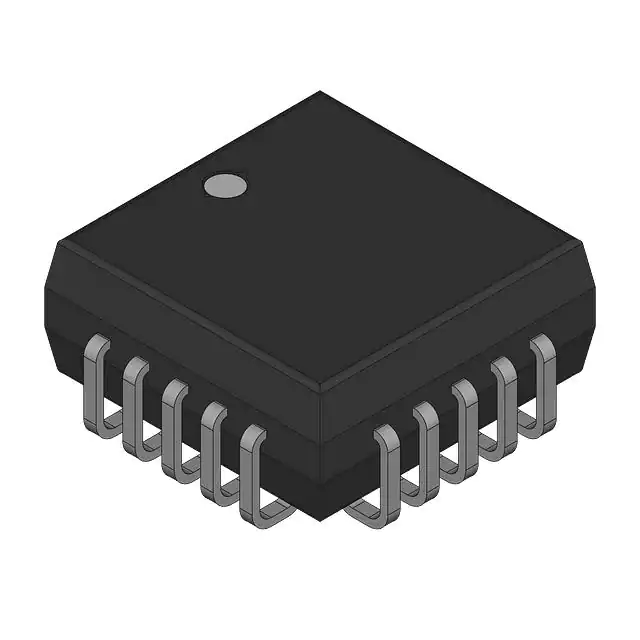

ADG201HSJP-REEL Image
×
Favorite
Compare
Add to RFQ
Share:
Analog Devices Inc. ADG201HSJP-REEL
Manufacturer No:
ADG201HSJP-REEL
Manufacturer:
Analog Devices Inc.
Package:
Bulk
Datasheet:
ADG201HSJP-REEL Datasheet
ECAD Model:
-
Description:
QUAD SPST SWITCH
Delivery:
Payment:
Product Attributes
Switch Circuit:
SPST - NO
Multiplexer/Demultiplexer Circuit:
1:1
Number of Circuits:
4
On-State Resistance (Max):
50Ohm
Channel-to-Channel Matching (ΔRon):
1.5Ohm
Voltage - Supply, Single (V+):
10.8V ~ 16.5V, ±13.5V ~ 16.5V
Voltage - Supply, Dual (V±):
10.8V ~ 16.5V, ±13.5V ~ 16.5V
Switch Time (Ton, Toff) (Max):
75ns, 75ns
-3db Bandwidth:
-
Charge Injection:
10pC
Channel Capacitance (CS(off), CD(off)):
10pF, 10pF
Current - Leakage (IS(off)) (Max):
1nA
Crosstalk:
-86dB @ 100kHz
Operating Temperature:
-40°C ~ 85°C
Mounting Type:
Surface Mount
Package / Case:
20-LCC (J-Lead)
Supplier Device Package:
20-PLCC (9x9)
0
Remaining
View Similar
In Stock
UnitPrice:
$4.67
Quantity:
135
Please send RFQ , we will respond immediately.
