ADG1634LYCPZ-REEL7
  • Share:

Analog Devices Inc. ADG1634LYCPZ-REEL7

Manufacturer No:
ADG1634LYCPZ-REEL7
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
ADG1634LYCPZ-REEL7 Datasheet
ECAD Model:
-
Description:
STACKED DIE, SPDT X 4
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Switch Circuit:SPDT
Multiplexer/Demultiplexer Circuit:2:1
Number of Circuits:4
On-State Resistance (Max):4.6Ohm
Channel-to-Channel Matching (ΔRon):120mOhm
Voltage - Supply, Single (V+):3.3V ~ 16V, ±3.3V ~ 8V
Voltage - Supply, Dual (V±):3.3V ~ 16V, ±3.3V ~ 8V
Switch Time (Ton, Toff) (Max):154ns, 195ns
-3db Bandwidth:77MHz
Charge Injection:-12.4pC
Channel Capacitance (CS(off), CD(off)):19pF, 32pF
Current - Leakage (IS(off)) (Max):150pA
Crosstalk:-64dB @ 1MHz
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount

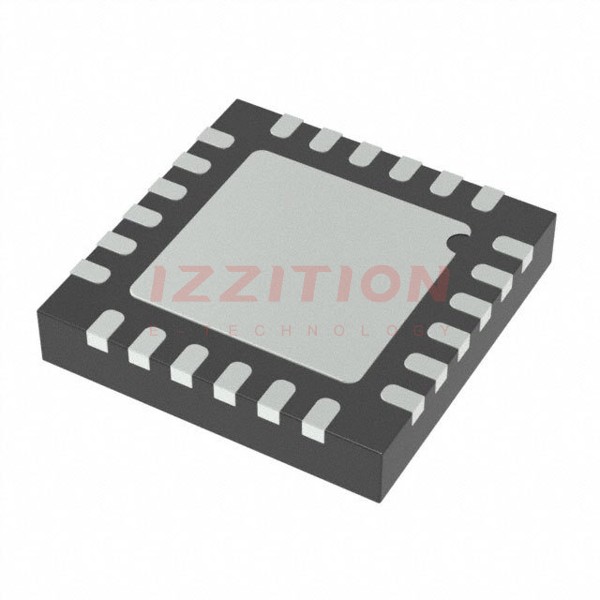

Package / Case:24-VFQFN Exposed Pad, CSP
Supplier Device Package:24-LFCSP (4x4)
0 Remaining View Similar

In Stock

$6.79
110

Please send RFQ , we will respond immediately.
