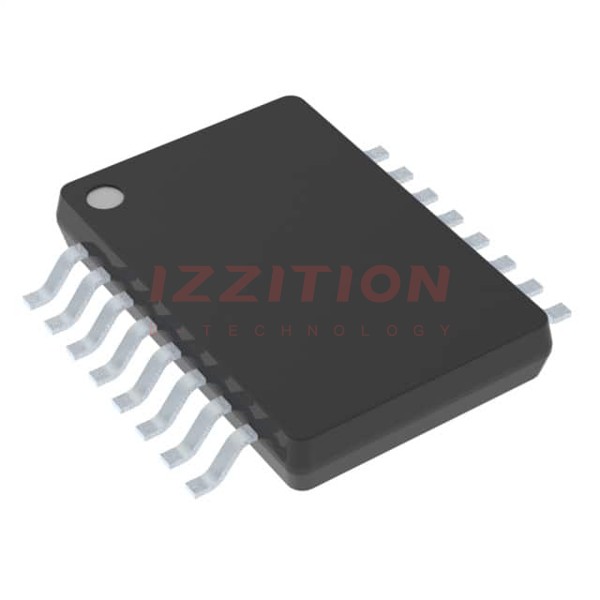

| Part Number | ADG1434YRUZ | ADG1436YRUZ | ADG1234YRUZ | ADG1404YRUZ | ADG1433YRUZ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Switch Circuit | SPDT | SPDT | SPDT | SP4T | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 4:1 | 2:1 |
| Number of Circuits | 4 | 2 | 4 | 1 | 3 |
| On-State Resistance (Max) | 4.7Ohm | 1.8Ohm | 190Ohm | 1.8Ohm | 4.7Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm | 100mOhm | 3.5Ohm | 100mOhm | 500mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V | ±5V ~ 16.5V | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 170ns, 75ns | 120ns, 130ns | 140ns, 45ns | 120ns, 135ns | 170ns, 75ns |
| -3db Bandwidth | 200MHz | 110MHz | 900MHz | 55MHz | 200MHz |
| Charge Injection | -50pC | -20pC | 0.5pC | -20pC | -50pC |
| Channel Capacitance (CS(off), CD(off)) | 12pF, 22pF | 23pF, 50pF | 1.7pF, 1.8pF | 23pF, 90pF | 12pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 300pA | 550pA | 100pA | 550pA | 300pA |
| Crosstalk | -70dB @ 1MHz | -80dB @ 100kHz | -85dB @ 1MHz | -82dB @ 100kHz | -70dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 16-TSSOP | 20-TSSOP | 14-TSSOP | 16-TSSOP |
