Please send RFQ , we will respond immediately.

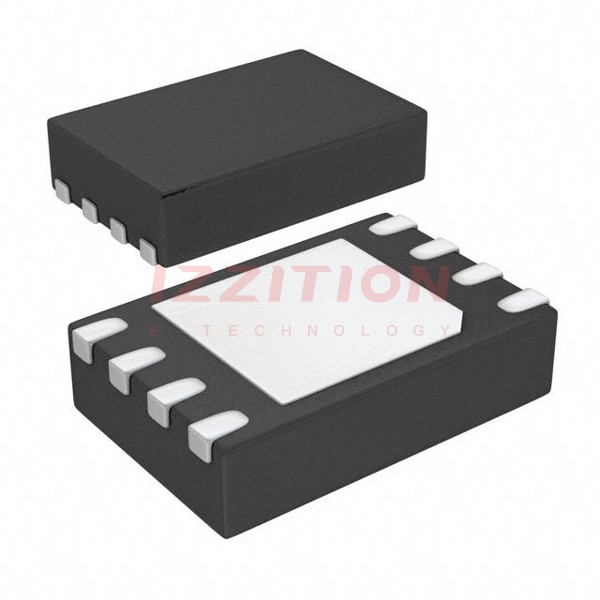

| Part Number | ADG1419BCPZ-REEL7 | ADG1439BCPZ-REEL7 | ADG1414BCPZ-REEL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | SPDT | SP4T | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 2:1 | 4:1 | 1:1 |
| Number of Circuits | 1 | 2 | 8 |
| On-State Resistance (Max) | 2.4Ohm | 11.5Ohm | 11.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm | 550mOhm | 550mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 12V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 110ns, 140ns | - | 93ns, 35ns |
| -3db Bandwidth | 135MHz | 130MHz | 256MHz |
| Charge Injection | -16pC | 4pC | 10pC |
| Channel Capacitance (CS(off), CD(off)) | 19pF, 44pF | 9pF, 28pF | 8pF |
| Current - Leakage (IS(off)) (Max) | 500pA | 150pA | 150pA |
| Crosstalk | -64dB @ 1MHz | -70dB @ 1MHz | -75dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 24-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (2x3) | 20-LFCSP (4x4) | 24-LFCSP (4x4) |
