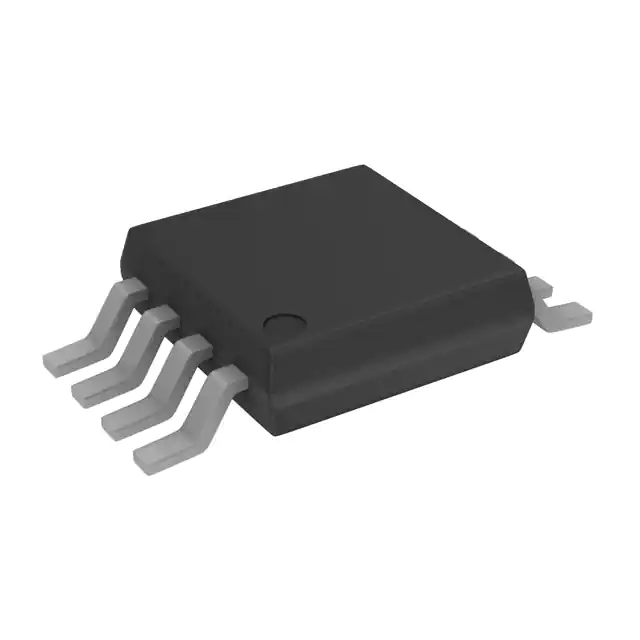

| Part Number | ADG1401BRMZ-REEL7 | ADG1402BRMZ-REEL7 | ADG1421BRMZ-REEL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | SPST - NO | SPST - NC | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 1 | 1 | 2 |
| On-State Resistance (Max) | 1.3Ohm | 1.3Ohm | 2.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 200mOhm | 200mOhm | 20mOhm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 150ns, 150ns | 150ns, 150ns | 145ns, 145ns |
| -3db Bandwidth | 120MHz | 120MHz | 180MHz |
| Charge Injection | -12pC | -12pC | -5pC |
| Channel Capacitance (CS(off), CD(off)) | 36pF, 41pF | 36pF, 41pF | 18pF, 22pF |
| Current - Leakage (IS(off)) (Max) | 400pA | 400pA | 500pA |
| Crosstalk | - | - | -74dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP | 8-MSOP | 10-MSOP |
