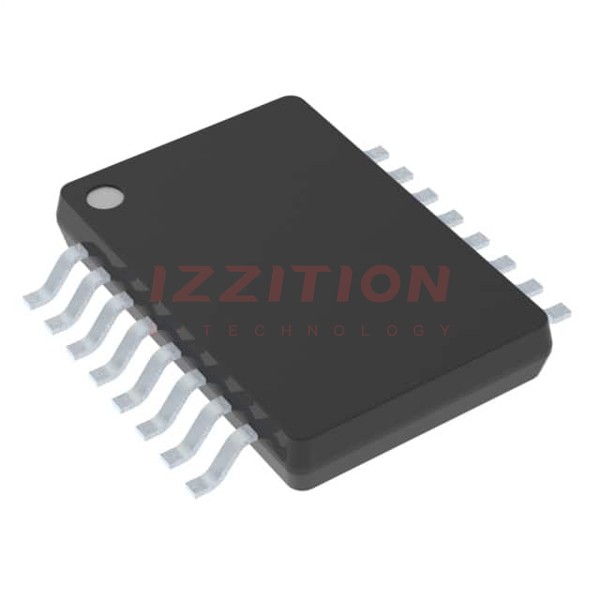

| Part Number | ADG1234YRUZ | ADG1236YRUZ | ADG1434YRUZ | ADG1204YRUZ | ADG1233YRUZ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Switch Circuit | SPDT | SPDT | SPDT | SP4T | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 4:1 | 2:1 |
| Number of Circuits | 4 | 2 | 4 | 1 | 3 |
| On-State Resistance (Max) | 190Ohm | 190Ohm | 4.7Ohm | 190Ohm | 190Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 500mOhm | 6Ohm | 3.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 12V | 5V ~ 16.5V | 12V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V | ±15V | ±4.5V ~ 16.5V | ±15V | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 140ns, 45ns | 150ns, 90ns | 170ns, 75ns | 85ns, 110ns | 140ns, 45ns |
| -3db Bandwidth | 900MHz | 1GHz | 200MHz | 800MHz | 900MHz |
| Charge Injection | 0.5pC | -1pC | -50pC | -0.7pC | 0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 1.7pF, 1.8pF | 1.6pF | 12pF, 22pF | 1.5pF, 4.2pF | 1.7pF, 1.8pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 300pA | 100pA | 100pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -70dB @ 1MHz | -80dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) | 20-TSSOP (0.173", 4.40mm Width) | 14-TSSOP (0.173", 4.40mm Width) | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP | 16-TSSOP | 20-TSSOP | 14-TSSOP | 16-TSSOP |
