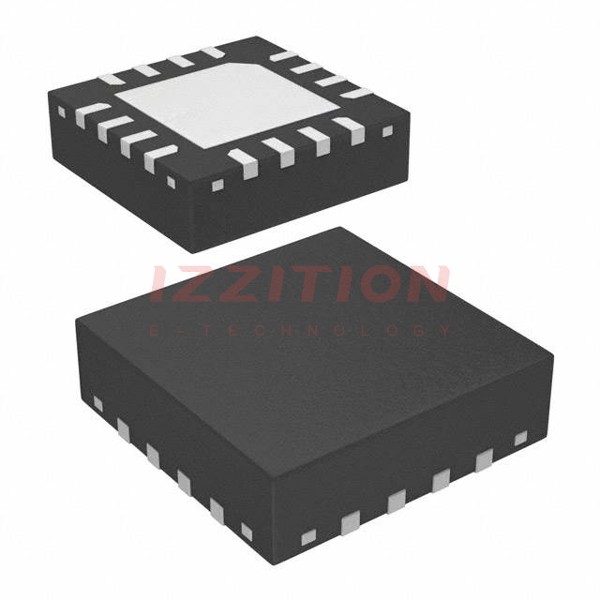

| Part Number | ADG1233YCPZ-REEL7 | ADG1234YCPZ-REEL7 | ADG1433YCPZ-REEL7 | ADG1236YCPZ-REEL7 | ADG1213YCPZ-REEL7 | ADG1233YCPZ-REEL |
|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Switch Circuit | SPDT | SPDT | SPDT | SPDT | SPST - NO/NC | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 | 2:1 | 1:1 | 2:1 |
| Number of Circuits | 3 | 4 | 3 | 2 | 4 | 3 |
| On-State Resistance (Max) | 190Ohm | 190Ohm | 4.7Ohm | 190Ohm | 190Ohm | 190Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 500mOhm | 3.5Ohm | 2.5Ohm | 3.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V | 12V | 5V ~ 16.5V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V | ±5V ~ 16.5V | ±4.5V ~ 16.5V | ±15V | ±4.5V ~ 16.5V | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 140ns, 45ns | 140ns, 45ns | 170ns, 75ns | 150ns, 90ns | 130ns, 115ns | 140ns, 45ns |
| -3db Bandwidth | 900MHz | 900MHz | 200MHz | 1GHz | 1GHz | 900MHz |
| Charge Injection | 0.5pC | 0.5pC | -50pC | -1pC | -0.3pC | 0.5pC |
| Channel Capacitance (CS(off), CD(off)) | 1.7pF, 1.8pF | 1.7pF, 1.8pF | 12pF, 22pF | 1.6pF | 1.1pF, 1.2pF | 1.7pF, 1.8pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 300pA | 100pA | 100pA | 100pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -70dB @ 1MHz | -85dB @ 1MHz | -90dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP | 20-WFQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP | 12-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) | 20-LFCSP (4x4) | 16-LFCSP-VQ (4x4) | 12-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP-VQ (4x4) |
