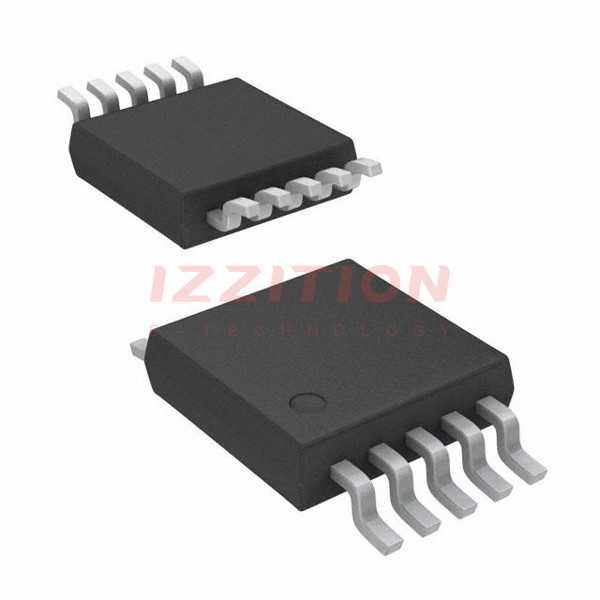

| Part Number | ADG1222BRMZ | ADG1422BRMZ | ADG1223BRMZ | ADG1221BRMZ |
|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active |
| Switch Circuit | SPST - NC | SPST - NC | SPST - NO/NC | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 2 | 2 | 2 | 2 |
| On-State Resistance (Max) | 200Ohm | 2.4Ohm | 200Ohm | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.5Ohm | 20mOhm | 2.5Ohm | 2.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V | ±4.5V ~ 16.5V | ±5V ~ 16.5V | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 130ns, 105ns | 145ns, 145ns | 130ns, 105ns | 130ns, 105ns |
| -3db Bandwidth | 960MHz | 180MHz | 960MHz | 960MHz |
| Charge Injection | 0.1pC | -5pC | 0.1pC | 0.1pC |
| Channel Capacitance (CS(off), CD(off)) | 2.2pF, 2.2pF | 18pF, 22pF | 2.2pF, 2.2pF | 2.2pF, 2.2pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 500pA | 100pA | 100pA |
| Crosstalk | -90dB @ 1MHz | -74dB @ 1MHz | -90dB @ 1MHz | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP | 10-MSOP | 10-MSOP | 10-MSOP |
