| Part Number | ADG1212YCPZ-500RL7 | ADG1213YCPZ-500RL7 | ADG1211YCPZ-500RL7 |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Switch Circuit | SPST - NO | SPST - NO/NC | SPST - NC |
| Multiplexer/Demultiplexer Circuit | 1:1 | 1:1 | 1:1 |
| Number of Circuits | 4 | 4 | 4 |
| On-State Resistance (Max) | 190Ohm | 190Ohm | 190Ohm |
| Channel-to-Channel Matching (ΔRon) | 2.5Ohm | 2.5Ohm | 2.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V | ±4.5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 130ns, 115ns | 130ns, 115ns | 130ns, 115ns |
| -3db Bandwidth | 1GHz | 1GHz | 1GHz |
| Charge Injection | -0.3pC | -0.3pC | -0.3pC |
| Channel Capacitance (CS(off), CD(off)) | 1.1pF, 1.2pF | 1.1pF, 1.2pF | 1.1pF, 1.2pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA |
| Crosstalk | -90dB @ 1MHz | -90dB @ 1MHz | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

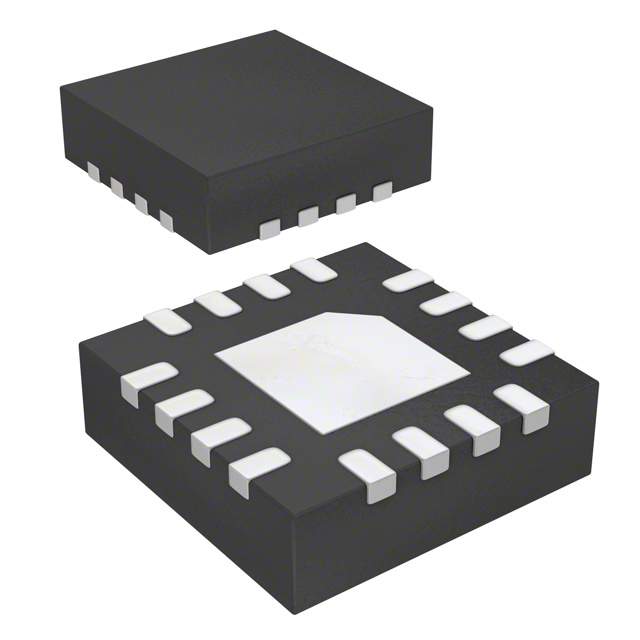

| Package / Case | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) | 16-LFCSP (3x3) | 16-LFCSP (3x3) |
