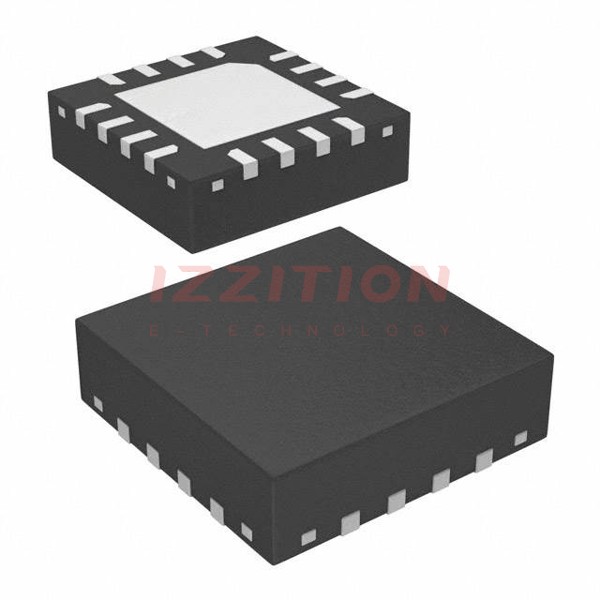

| Part Number | ADG1209YCPZ-REEL | ADG1209YCPZ-REEL7 | ADG1208YCPZ-REEL |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Obsolete | Active | Active |
| Switch Circuit | SP4T | SP4T | - |
| Multiplexer/Demultiplexer Circuit | 4:1 | 4:1 | 8:1 |
| Number of Circuits | 2 | 2 | 1 |
| On-State Resistance (Max) | 200Ohm | 200Ohm | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 3.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V | ±5V ~ 16.5V | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 95ns, 100ns | 95ns, 100ns | 95ns, 100ns |
| -3db Bandwidth | 550MHz | 550MHz | 550MHz |
| Charge Injection | 0.4pC | 0.4pC | 0.4pC |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF, 4.5pF | 1.5pF, 4.5pF | 1.5pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 100pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) |
