| Part Number | ADG1208YCPZ-REEL7 | ADG1209YCPZ-REEL7 | ADG1408YCPZ-REEL7 | ADG1204YCPZ-REEL7 | ADG1206YCPZ-REEL7 | ADG1207YCPZ-REEL7 | ADG1208YCPZ-REEL |
|---|---|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Switch Circuit | - | SP4T | - | SP4T | - | - | - |
| Multiplexer/Demultiplexer Circuit | 8:1 | 4:1 | 8:1 | 4:1 | 16:1 | 8:1 | 8:1 |
| Number of Circuits | 1 | 2 | 1 | 1 | 1 | 2 | 1 |
| On-State Resistance (Max) | 200Ohm | 200Ohm | 4.7Ohm | 190Ohm | 200Ohm | 200Ohm | 200Ohm |
| Channel-to-Channel Matching (ΔRon) | 3.5Ohm | 3.5Ohm | 200mOhm | 6Ohm | 3.5Ohm | 3.5Ohm | 3.5Ohm |
| Voltage - Supply, Single (V+) | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V | 12V | 5V ~ 16.5V | 5V ~ 16.5V | 5V ~ 16.5V |
| Voltage - Supply, Dual (V±) | ±5V ~ 16.5V | ±5V ~ 16.5V | ±4.5V ~ 16.5V | ±15V | ±5V ~ 16.5V | ±5V ~ 16.5V | ±5V ~ 16.5V |
| Switch Time (Ton, Toff) (Max) | 95ns, 100ns | 95ns, 100ns | 120ns, 120ns | 85ns, 110ns | 95ns, 100ns | 95ns, 100ns | 95ns, 100ns |
| -3db Bandwidth | 550MHz | 550MHz | 60MHz | 800MHz | 280MHz | 490MHz | 550MHz |
| Charge Injection | 0.4pC | 0.4pC | -50pC | -0.7pC | 0.5pC | 0.5pC | 0.4pC |
| Channel Capacitance (CS(off), CD(off)) | 1.5pF, 7pF | 1.5pF, 4.5pF | 14pF, 80pF | 1.5pF, 4.2pF | 2pF, 12pF | 2pF, 9pF | 1.5pF, 7pF |
| Current - Leakage (IS(off)) (Max) | 100pA | 100pA | 200pA | 100pA | 200pA | 200pA | 100pA |
| Crosstalk | -85dB @ 1MHz | -85dB @ 1MHz | -70dB @ 1MHz | -80dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz | -85dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

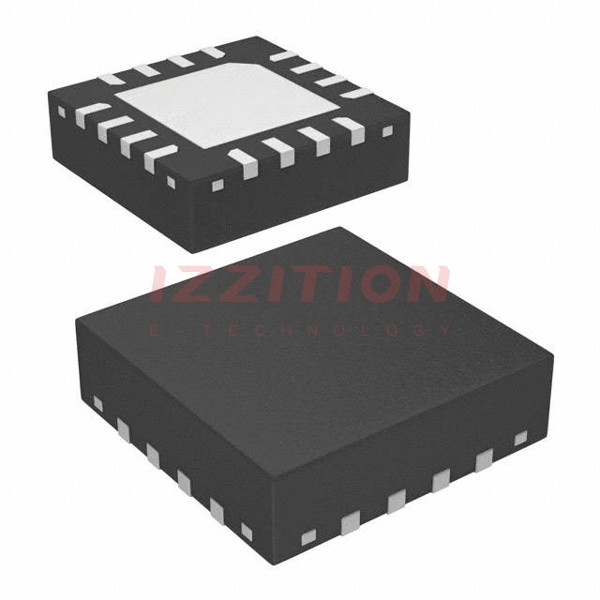

| Package / Case | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP | 12-WFQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP | 32-WFQFN Exposed Pad, CSP | 16-VQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) | 16-LFCSP-VQ (4x4) | 12-LFCSP (3x3) | 32-LFCSP-WQ (5x5) | 32-LFCSP-WQ (5x5) | 16-LFCSP-VQ (4x4) |
