| Part Number | ADCMP603BCPZ-WP | ADCMP605BCPZ-WP | ADCMP607BCPZ-WP |
|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active |
| Type | with Latch | with Latch | with Latch |
| Number of Elements | 1 | 1 | 1 |
| Output Type | CMOS, Complementary, Rail-to-Rail, TTL | Complementary, LVDS, Rail-to-Rail | CML, Complementary, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.5V ~ 5.5V | 2.5V ~ 5.5V | 2.5V ~ 5.5V |
| Voltage - Input Offset (Max) | 5mV @ 2.5V | 5mV @ 3V | 5mV @ 2.5V |
| Current - Input Bias (Max) | 5µA @ 2.5V | 5µA @ 3V | 5µA @ 2.5V |
| Current - Output (Typ) | 50mA | 50mA | 50mA |
| Current - Quiescent (Max) | 1.8mA | 3mA | 1.5mA |
| CMRR, PSRR (Typ) | 50dB CMRR, 50dB PSRR | 50dB CMRR, 50dB PSRR | 50dB CMRR, 50dB PSRR |
| Propagation Delay (Max) | 5ns | 3ns | 2.1ns |
| Hysteresis | 100µV | 100µV | 100µV |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

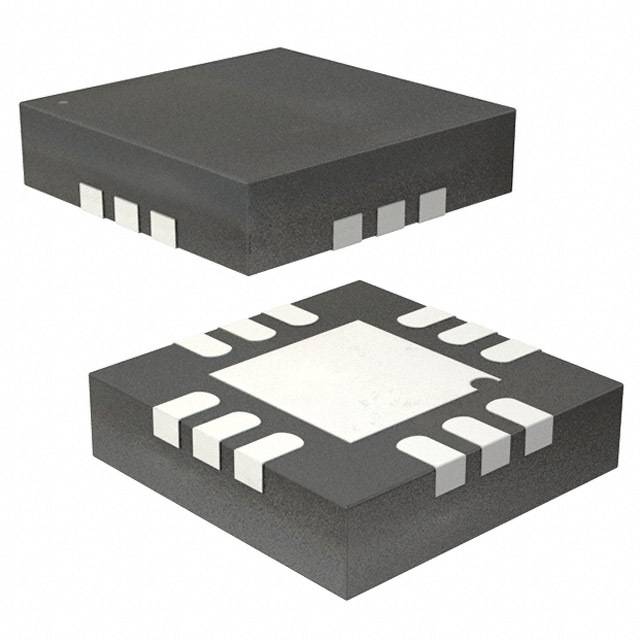

| Package / Case | 12-WFQFN Exposed Pad | 12-WFQFN Exposed Pad, CSP | 12-WFQFN Exposed Pad |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 12-LFCSP-WQ (3x3) | 12-LFCSP (3x3) | 12-LFCSP-WQ (3x3) |
