ADCMP603BCPZ-R7
  • Share:

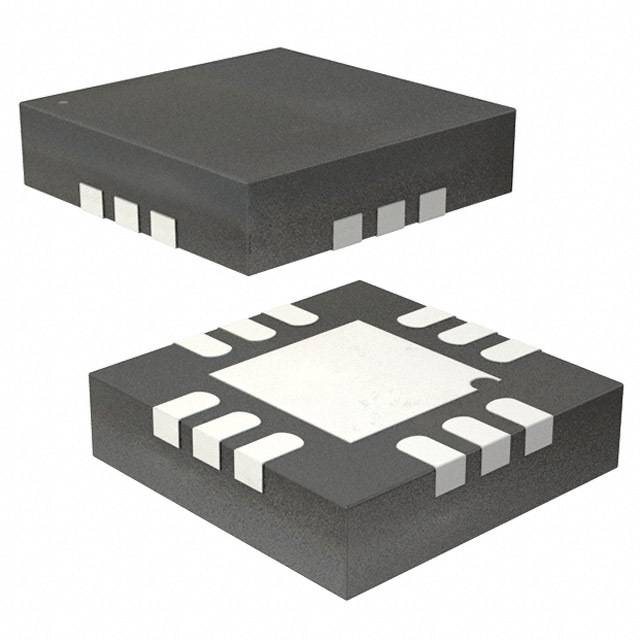

Analog Devices Inc. ADCMP603BCPZ-R7

Manufacturer No:
ADCMP603BCPZ-R7
Manufacturer:
Analog Devices Inc.
Package:
Tape & Reel (TR)
Datasheet:
ADCMP603BCPZ-R7 Datasheet
ECAD Model:
-
Description:
IC COMP TTL/CMOS 1CHAN 12-LFCSP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:with Latch
Number of Elements:1
Output Type:CMOS, Complementary, Rail-to-Rail, TTL
Voltage - Supply, Single/Dual (±):2.5V ~ 5.5V
Voltage - Input Offset (Max):5mV @ 2.5V
Current - Input Bias (Max):5µA @ 2.5V
Current - Output (Typ):50mA
Current - Quiescent (Max):1.8mA
CMRR, PSRR (Typ):50dB CMRR, 50dB PSRR
Propagation Delay (Max):5ns
Hysteresis:100µV
Operating Temperature:-40°C ~ 125°C
Package / Case:12-WFQFN Exposed Pad
Mounting Type:Surface Mount
Supplier Device Package:12-LFCSP-WQ (3x3)
0 Remaining View Similar

In Stock

$5.75
5

Please send RFQ , we will respond immediately.

Similar Products

Part Number ADCMP603BCPZ-R7 ADCMP607BCPZ-R7   ADCMP605BCPZ-R7   ADCMP603BCPZ-R2
Manufacturer Analog Devices Inc. Analog Devices Inc. Analog Devices Inc. Analog Devices Inc.
Product Status Active Active Active Discontinued at Digi-Key
Type with Latch with Latch with Latch with Latch
Number of Elements 1 1 1 1
Output Type CMOS, Complementary, Rail-to-Rail, TTL CML, Complementary, Rail-to-Rail Complementary, LVDS, Rail-to-Rail CMOS, Complementary, Rail-to-Rail, TTL
Voltage - Supply, Single/Dual (±) 2.5V ~ 5.5V 2.5V ~ 5.5V 2.5V ~ 5.5V 2.5V ~ 5.5V
Voltage - Input Offset (Max) 5mV @ 2.5V 5mV @ 2.5V 5mV @ 3V 5mV @ 2.5V
Current - Input Bias (Max) 5µA @ 2.5V 5µA @ 2.5V 5µA @ 3V 5µA @ 2.5V
Current - Output (Typ) 50mA 50mA 50mA 50mA
Current - Quiescent (Max) 1.8mA 1.5mA 3mA 1.8mA
CMRR, PSRR (Typ) 50dB CMRR, 50dB PSRR 50dB CMRR, 50dB PSRR 50dB CMRR, 50dB PSRR 50dB CMRR, 50dB PSRR
Propagation Delay (Max) 5ns 2.1ns 3ns 5ns
Hysteresis 100µV 100µV 100µV 100µV
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Package / Case 12-WFQFN Exposed Pad 12-WFQFN Exposed Pad 12-WFQFN Exposed Pad, CSP 12-WFQFN Exposed Pad
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 12-LFCSP-WQ (3x3) 12-LFCSP-WQ (3x3) 12-LFCSP (3x3) 12-LFCSP-WQ (3x3)
