| Part Number | ADCMP564BRQZ | ADCMP561BRQZ | ADCMP562BRQZ | ADCMP563BRQZ | ADCMP564BRQ |
|---|---|---|---|---|---|
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | with Latch | with Latch | with Latch | with Latch | with Latch |
| Number of Elements | 2 | 2 | 2 | 2 | 2 |
| Output Type | Complementary, Differential, ECL, Open-Emitter | Complementary, Differential, Open-Emitter, PECL | Complementary, Differential, Open-Emitter, PECL | Complementary, Differential, ECL, Open-Emitter | Complementary, Differential, ECL, Open-Emitter |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V | ±4.75V ~ 5.25V | ±4.75V ~ 5.25V | ±4.75V ~ 5.25V | ±4.75V ~ 5.25V |
| Voltage - Input Offset (Max) | 2mV @ -5.2V,5V | 2mV @ -5.2V,5V | 2mV @ -5.2V,5V | 2mV @ -5.2V,5V | 2mV @ -5.2V,5V |
| Current - Input Bias (Max) | 3µA @ -5.2V,5V | 3µA @ -5.2V,5V | 3µA @ -5.2V,5V | 3µA @ -5.2V,5V | 3µA @ -5.2V,5V |
| Current - Output (Typ) | 30mA | 30mA | 30mA | 30mA | 30mA |
| Current - Quiescent (Max) | 5mA, 25mA | 5mA, 28mA, 13mA | 5mA, 28mA, 13mA | 5mA, 25mA | 5mA, 25mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 85dB PSRR | 80dB CMRR, 85dB PSRR | 80dB CMRR, 85dB PSRR | 80dB CMRR, 85dB PSRR | 80dB CMRR, 85dB PSRR |
| Propagation Delay (Max) | 0.83ns | 0.83ns | 0.83ns | 0.83ns | 0.83ns |
| Hysteresis | ±1mV | ±1mV | ±1mV | ±1mV | ±1mV |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |

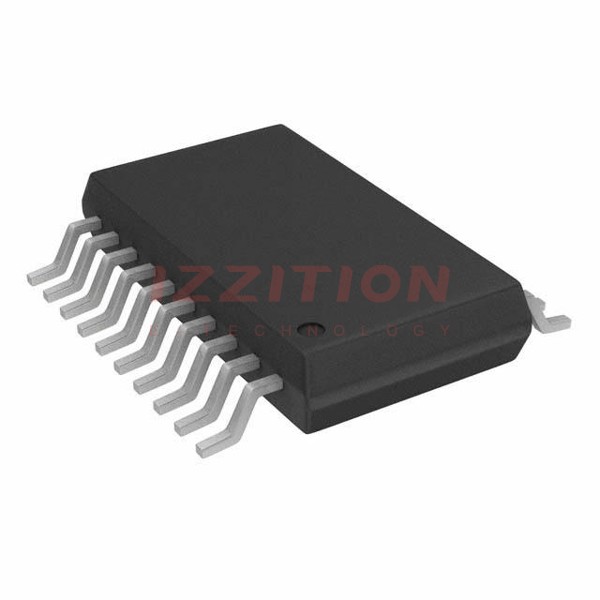

| Package / Case | 20-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 16-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-QSOP | 16-QSOP | 20-QSOP | 16-QSOP | 20-QSOP |
